This machine foot is suitable for hygienic production environments. It is USDA certified, manufactured in stainless steel and has a high weight load. This machine foot is USDA certified and is consequently approved for demanding sanitary applications. The solid stainless steel design allows a high load capacity. The sleeve covers the thread and also functions as a nut. The machine foot admits slopes up to 9° of floors and equipment. Type HG US HYGIENIC is available with anti-slip rubber.


Product DescriptionFoot Plate TypeSpindle Thread (UNC)Thread Length (inches)Total Height (D)Machine Foot Load (N)

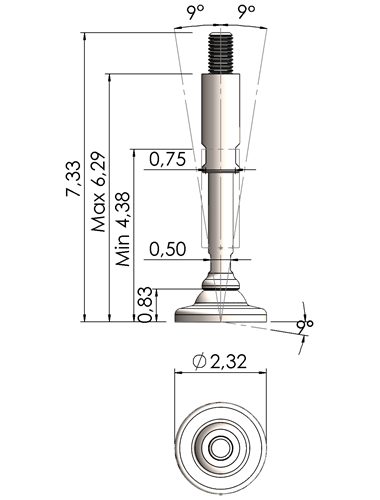

HG060-HJG US5865-RHO5825 Quote Request 2.365/86.57.3330.300
HG060-HJG US5885-RHO5835 Quote Request 2.365/88.59.3319.800

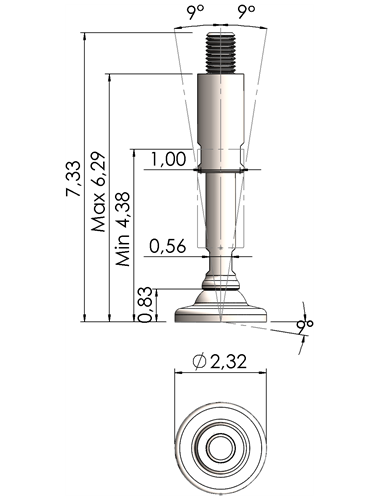

HG060-HJG US3465-RHO3425 Quote Request 2.363/46.57.3343.800

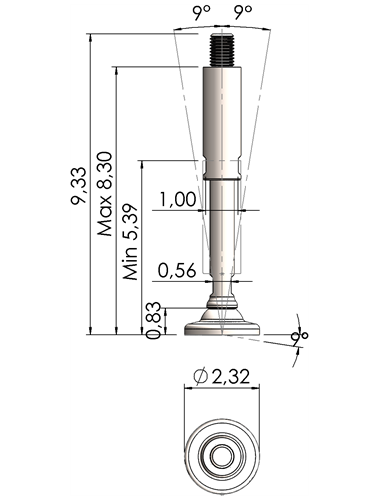

HG060-HJG US3485-RHO3435 Quote Request 2.363/48.59.3341.200

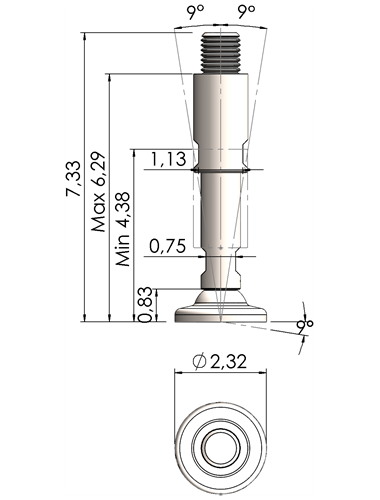

HG060-HJG US1065-RHO1025 Quote Request 2.3616.57.3377.500

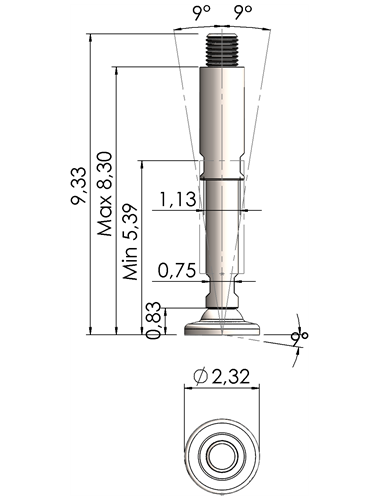

HG060-HJG US1085-RHO1035 Quote Request 2.3618.59.3377.500

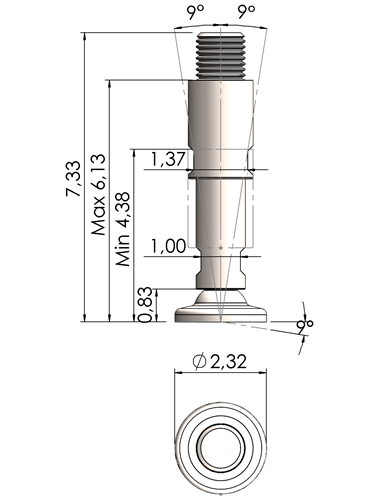

HG060-HJG US5465-RHO5425 Quote Request 2.361 1/46.57.3380.000

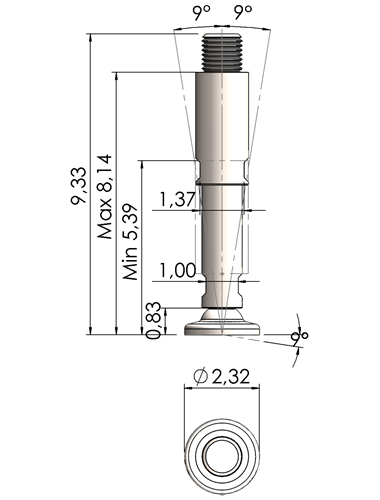

HG060-HJG US5485-RHO5435 Quote Request 2.361 1/48.59.3380.000

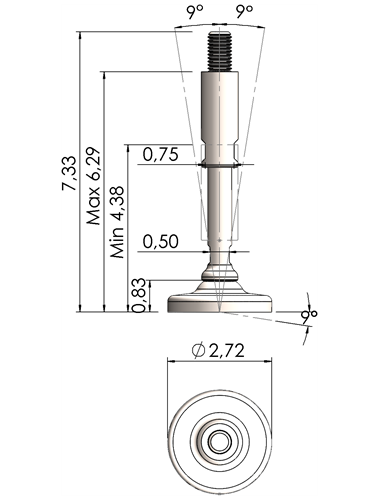

HG070-HJG US5865-RHO5825 Quote Request 2.765/86.57.3330.300

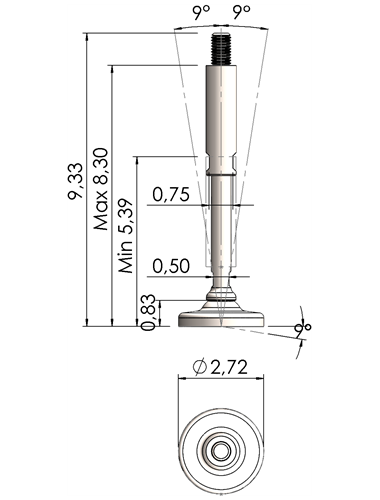

HG070-HJG US5885-RHO5835 Quote Request 2.765/88.59.3319.800

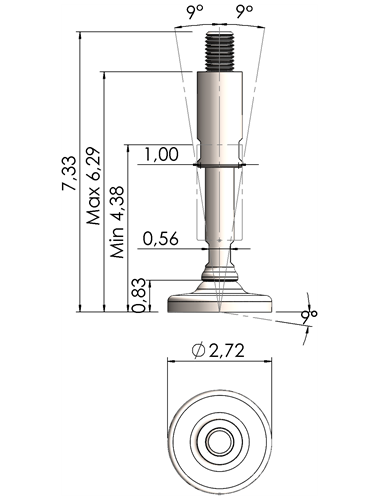

HG070-HJG US3465-RHO3425 Quote Request 2.763/46.57.3343.800

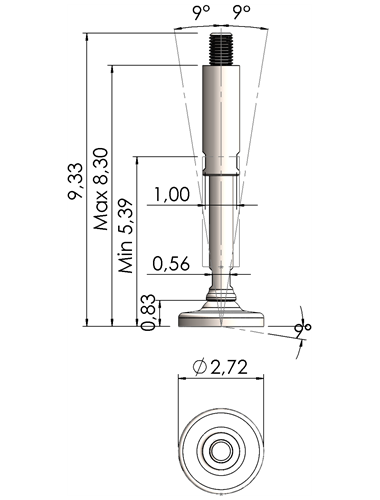

HG070-HJG US3485-RHO3435 Quote Request 2.763/48.59.3341.200

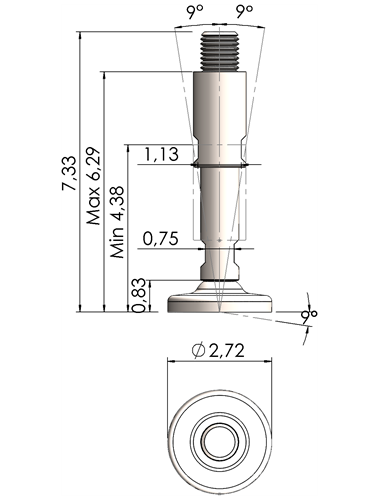

HG070-HJG US1065-RHO1025 Quote Request 2.7616.57.3377.500

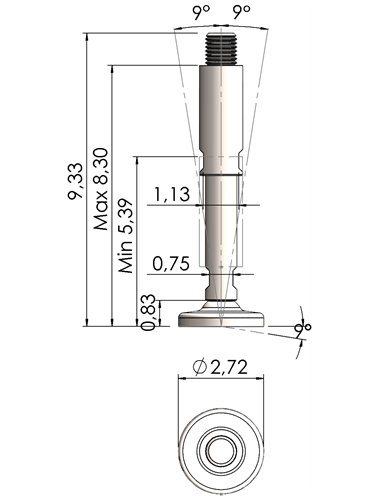

HG070-HJG US1085-RHO1035 Quote Request 2.7618.59.3377.500

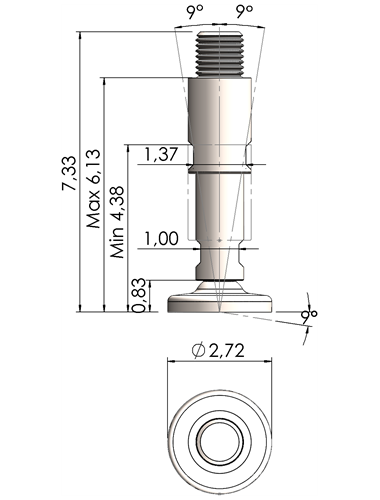

HG070-HJG US5465-RHO5425 Quote Request 2.761 1/46.57.3380.000
HG070-HJG US5485-RHO5435 Quote Request 2.761 1/48.59.3380.000

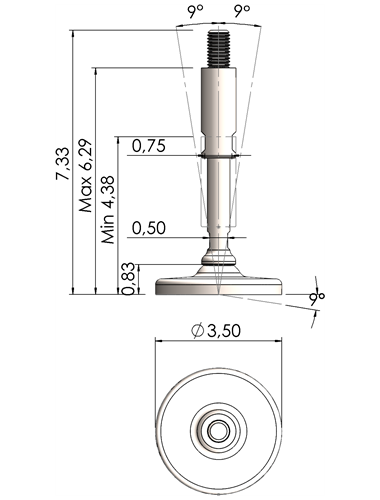

HG090-HJG US5865-RHO5825 Quote Request 3.545/86.57.3330.300

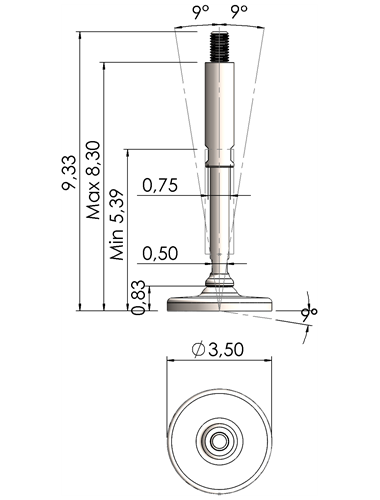

HG090-HJG US5885-RHO5835 Quote Request 3.545/88.59.3319.800
HG090-HJG US3465-RHO3425 Quote Request 3.543/46.57.3343.800

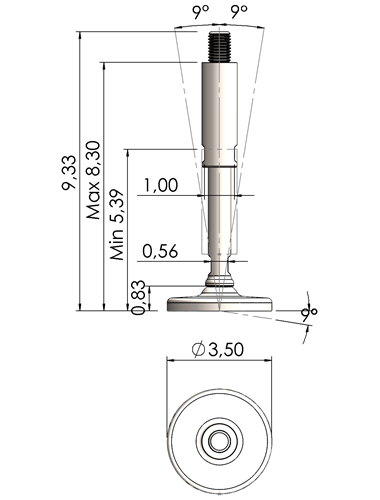

HG090-HJG US3485-RHO3435 Quote Request 3.543/48.59.3341.200

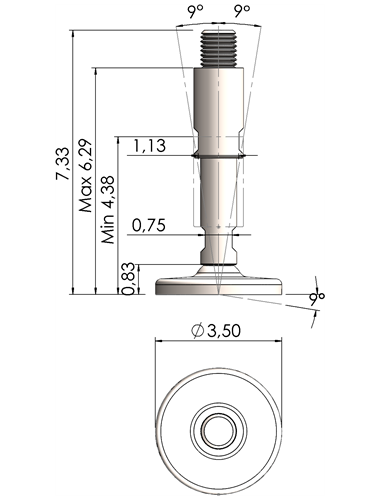

HG090-HJG US1065-RHO1025 Quote Request 3.5416.57.3377.500

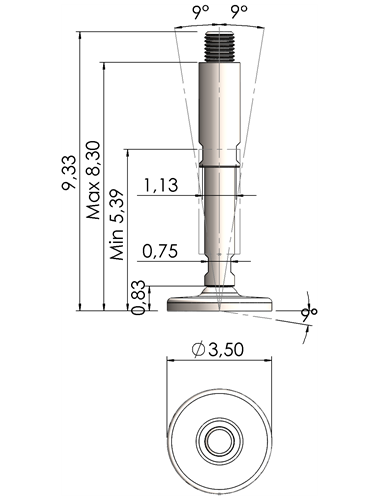

HG090-HJG US1085-RHO1035 Quote Request 3.5418.59.3377.500

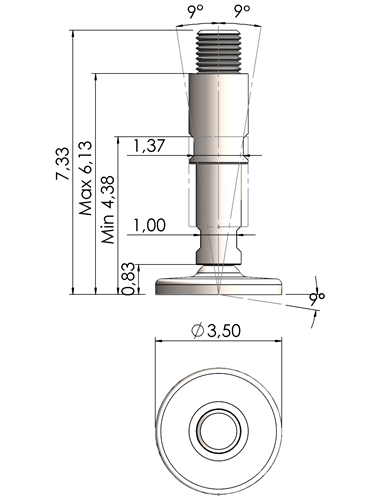

HG090-HJG US5465-RHO5425 Quote Request 3.541 1/46.57.3380.000

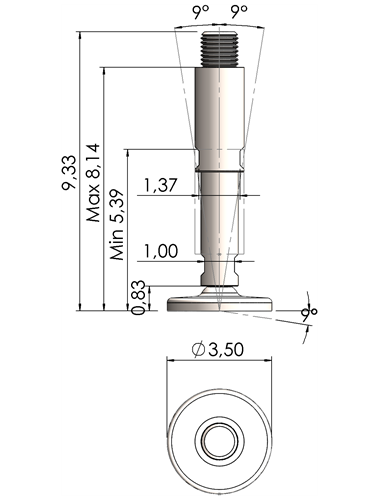

HG090-HJG US5485-RHO5435 Quote Request 3.541 1/48.59.3380.000

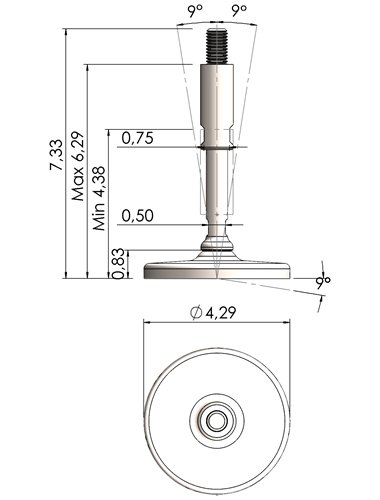

HG110-HJG US5865-RHO5825 Quote Request 4.335/86.57.3330.300

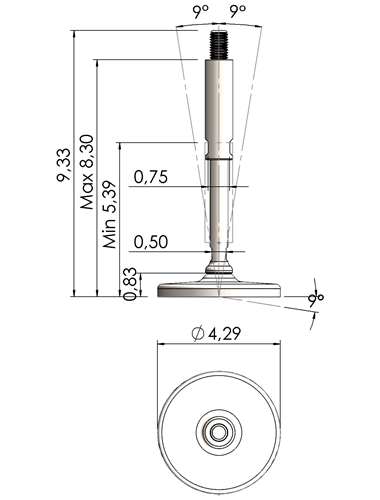

HG110-HJG US5885-RHO5835 Quote Request 4.335/88.59.3319.800

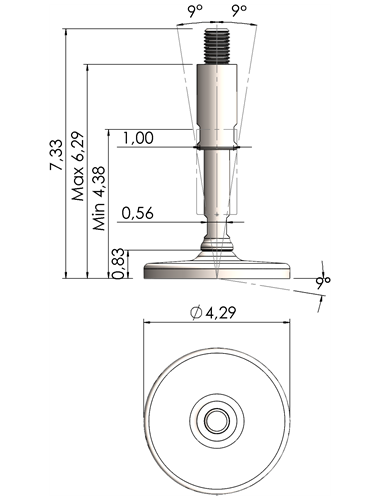

HG110-HJG US3465-RHO3425 Quote Request 4.333/46.57.3343.800

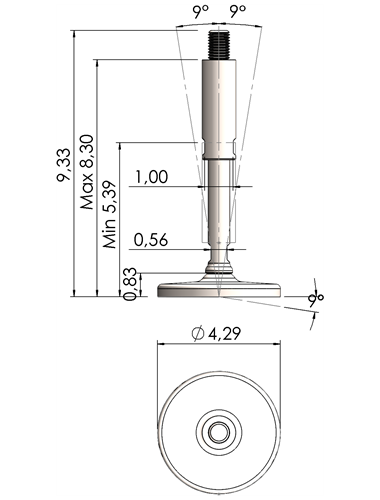

HG110-HJG US3485-RHO3435 Quote Request 4.333/48.59.3341.200

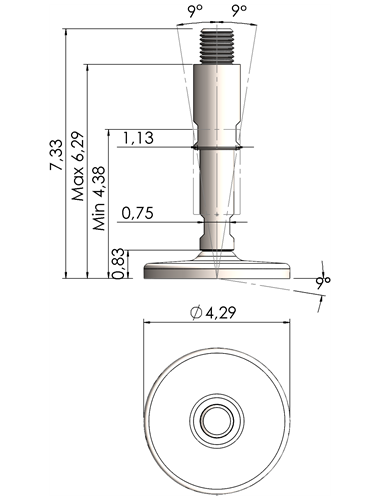

HG110-HJG US1065-RHO1025 Quote Request 4.3316.57.3377.500

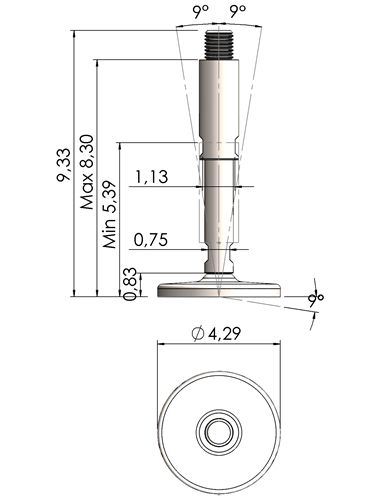

HG110-HJG US1085-RHO1035 Quote Request 4.3318.59.3377.500

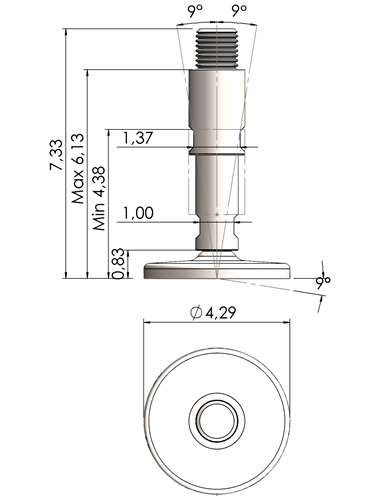

HG110-HJG US5465-RHO5425 Quote Request 4.331 1/46.57.3380.000

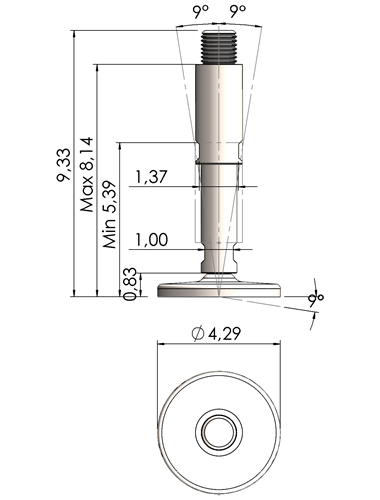

HG110-HJG US5485-RHO5435 Quote Request 4.331 1/48.59.3380.000

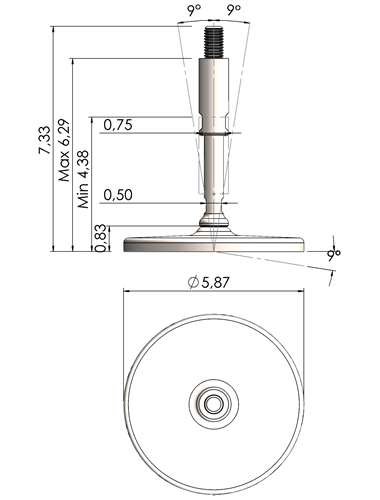

HG150-HJG US5865-RHO5825 Quote Request 5.915/86.57.3330.300
HG150-HJG US5885-RHO5835 Quote Request 5.915/88.59.3319.800

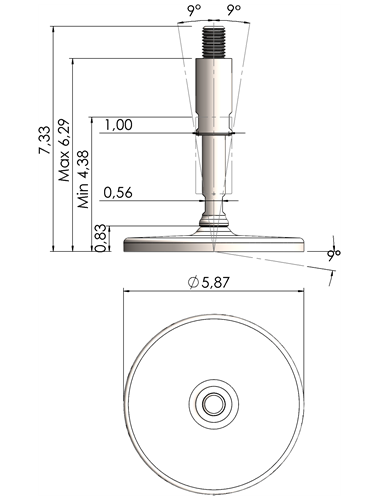

HG150-HJG US3465-RHO3425 Quote Request 5.913/46.57.3343.800

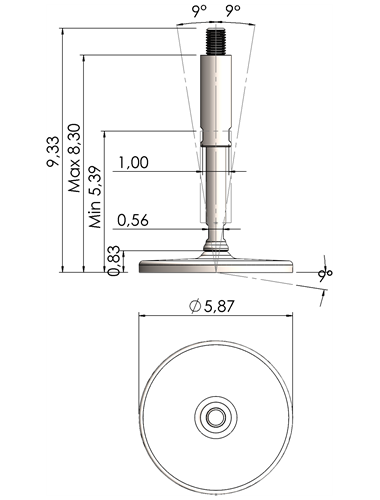

HG150-HJG US3485-RHO3435 Quote Request 5.913/48.59.3341.200

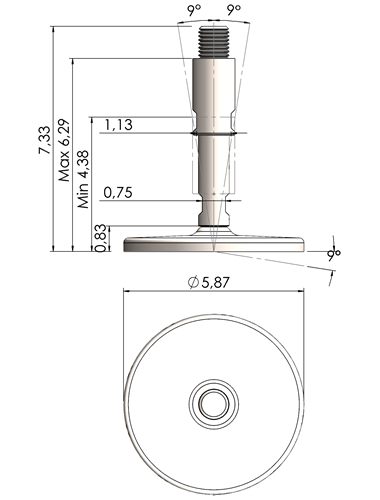

HG150-HJG US1065-RHO1025 Quote Request 5.9116.57.3377.500
HG150-HJG US1085-RHO1035 Quote Request 5.9118.59.3377.500

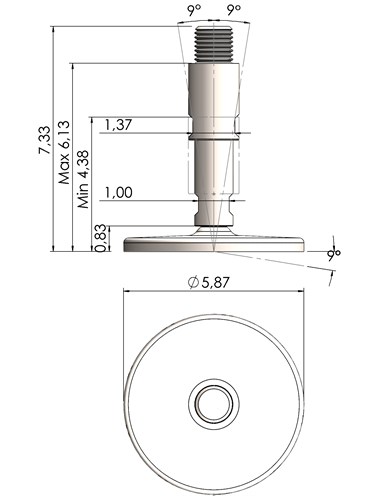

HG150-HJG US5465-RHO5425 Quote Request 5.911 1/46.57.3380.000

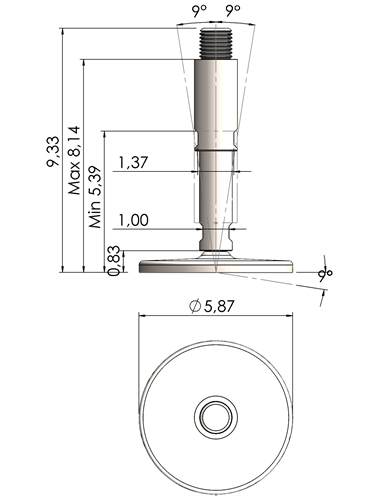

HG150-HJG US5485-RHO5435 Quote Request 5.911 1/48.59.3380.000
HG150-HJG US5485-RHO5435 Quote Request 5.911 1/48.59.3380.000
