HPA125 is a plastic foot with a high weight load suitable for heavy machinery. It absorbs up to 6° slants and can be fixed to the floor.
| Product Description | Foot Plate Type | Spindle Thread (UNC) | Thread Length (inches) | Total Height (D) | Machine Foot Load (N) | |
|---|---|---|---|---|---|---|

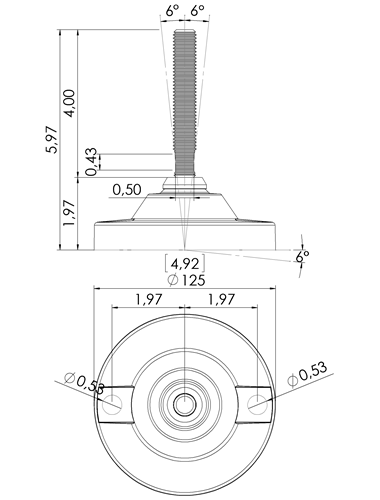

| HPA125-58-4 | Quote Request | 4.92 | 5/8 | 4 | 5.97 | 30.300 |

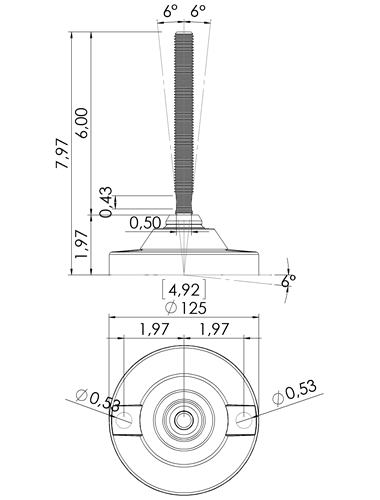

| HPA125-58-6 | Quote Request | 4.92 | 5/8 | 6 | 7.97 | 30.300 |

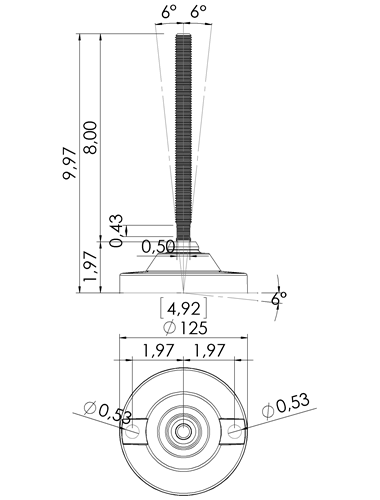

| HPA125-58-8 | Quote Request | 4.92 | 5/8 | 8 | 9.97 | 17.200 |

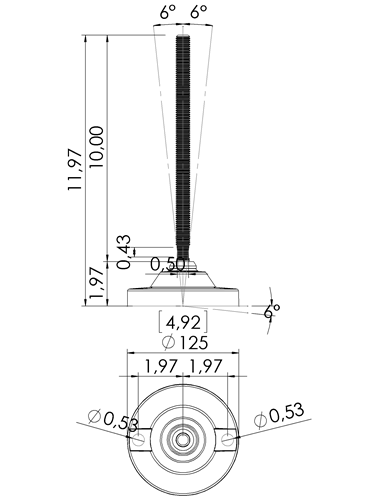

| HPA125-58-10 | Quote Request | 4.92 | 5/8 | 10 | 11.97 | 11.000 |
| HPA125-34-4 | Quote Request | 4.92 | 3/4 | 4 | 5.97 | 43.800 |
| HPA125-34-6 | Quote Request | 4.92 | 3/4 | 6 | 7.97 | 43.800 |

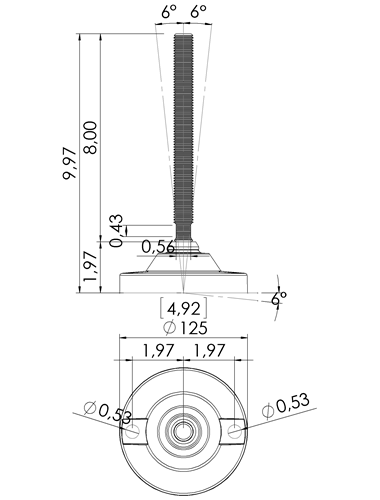

| HPA125-34-8 | Quote Request | 4.92 | 3/4 | 8 | 9.97 | 36.000 |

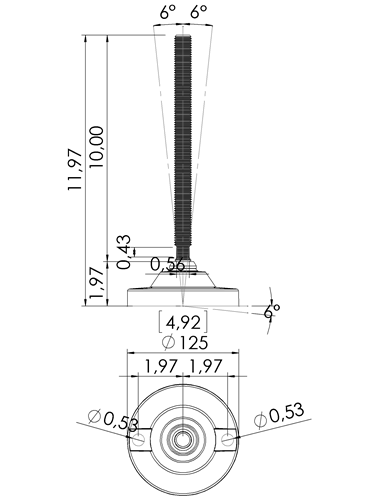

| HPA125-34-10 | Quote Request | 4.92 | 3/4 | 10 | 11.97 | 23.000 |

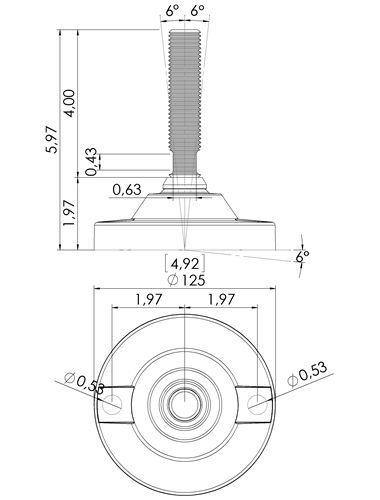

| HPA125-78-4 | Quote Request | 4.92 | 7/8 | 4 | 5.97 | 45.000 |

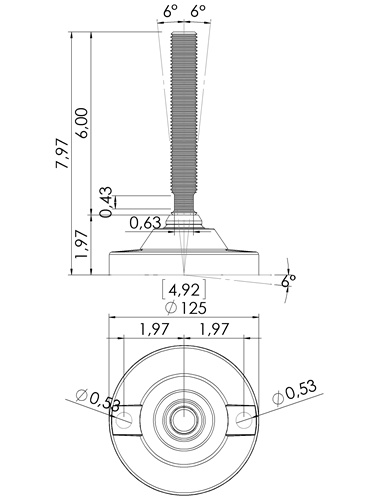

| HPA125-78-6 | Quote Request | 4.92 | 7/8 | 6 | 7.97 | 45.000 |
| HPA125-78-8 | Quote Request | 4.92 | 7/8 | 8 | 9.97 | 45.000 |

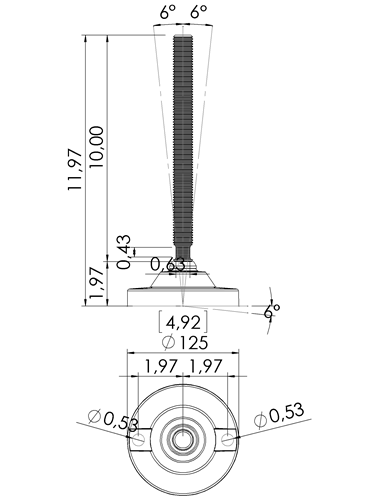

| HPA125-78-10 | Quote Request | 4.92 | 7/8 | 10 | 11.97 | 42.100 |

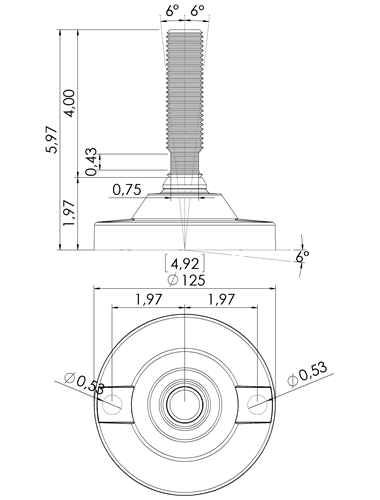

| HPA125-10-4 | Quote Request | 4.92 | 1 | 4 | 5.97 | 45.000 |

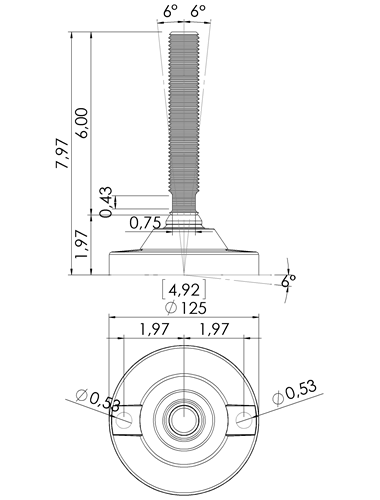

| HPA125-10-6 | Quote Request | 4.92 | 1 | 6 | 7.97 | 45.000 |

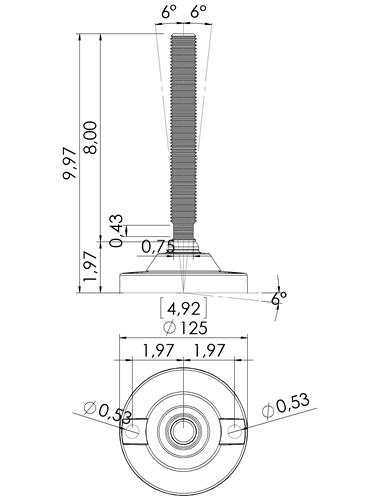

| HPA125-10-8 | Quote Request | 4.92 | 1 | 8 | 9.97 | 45.000 |
| HPA125-10-10 | Quote Request | 4.92 | 1 | 10 | 11.97 | 45.000 |

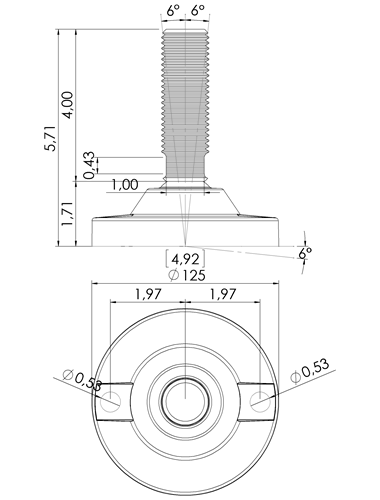

| HPA125-54-4 | Quote Request | 4.92 | 1 1/4 | 4 | 5.71 | 45.000 |

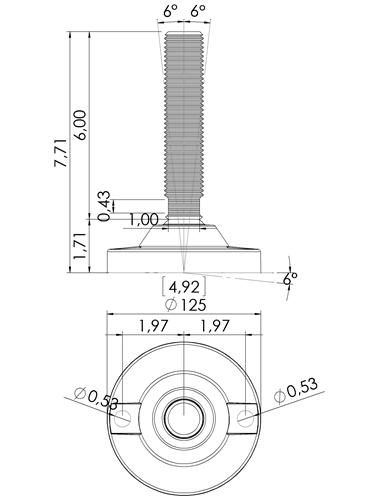

| HPA125-54-6 | Quote Request | 4.92 | 1 1/4 | 6 | 7.71 | 45.000 |
| HPA125-54-8 | Quote Request | 4.92 | 1 1/4 | 8 | 9.71 | 45.000 |

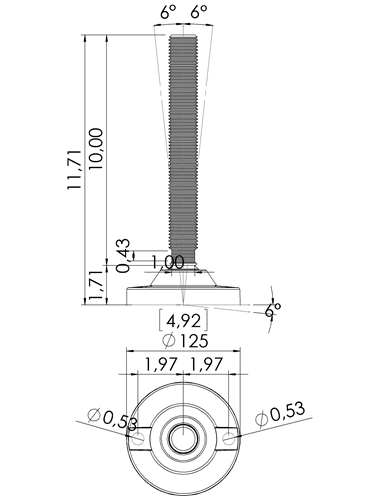

| HPA125-54-10 | Quote Request | 4.92 | 1 1/4 | 10 | 11.71 | 45.000 |
| HPA125-54-10 | Quote Request | 4.92 | 1 1/4 | 10 | 11.71 | 45.000 |
