NGI Leveling Mount | HX | Stainless Fully-Threaded

Type HX has an optimal design with a hygienic sealing of the footplate and the spindle. The foot is easy to clean and is approved to be used in the food industry.

Product Description		Foot Plate Type	Spindle Thread (UNC)	Thread Length (inches)	Total Height (D)	Machine Foot Load (N)

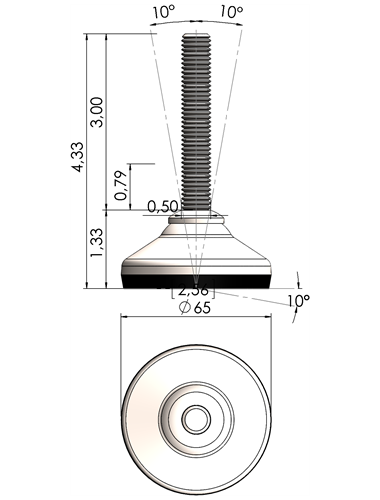

HX065-12-3	Quote Request	2.56	1/2	3	4.33	9

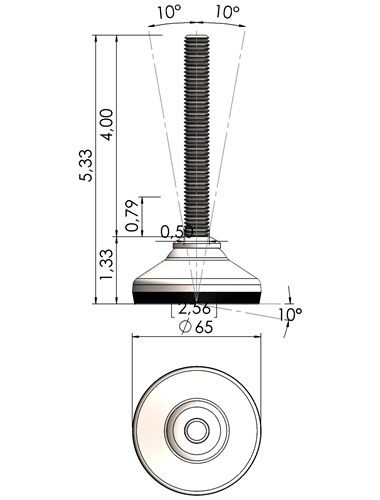

HX065-12-4	Quote Request	2.56	1/2	4	5.33	9

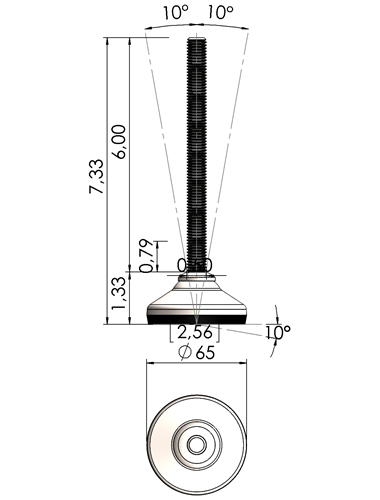

HX065-12-6	Quote Request	2.56	1/2	6	7.33	9

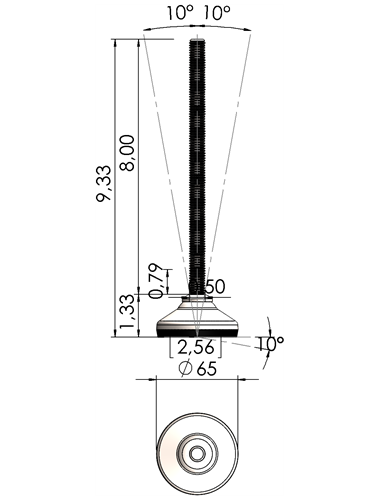

HX065-12-8	Quote Request	2.56	1/2	8	9.33	6.4

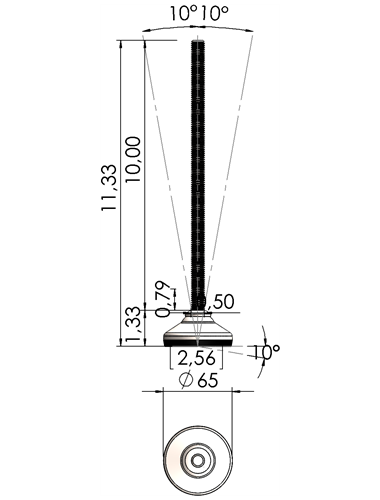

HX065-12-10	Quote Request	2.56	1/2	10	11.33	4.1

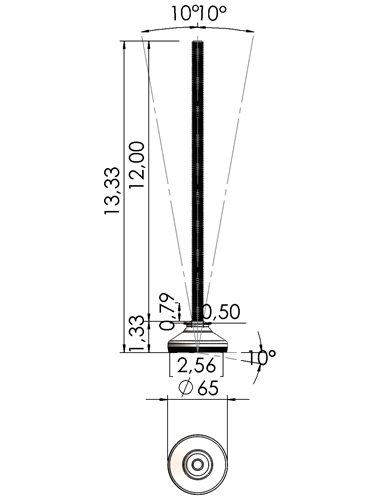

HX065-12-12	Quote Request	2.56	1/2	12	13.33	2.8

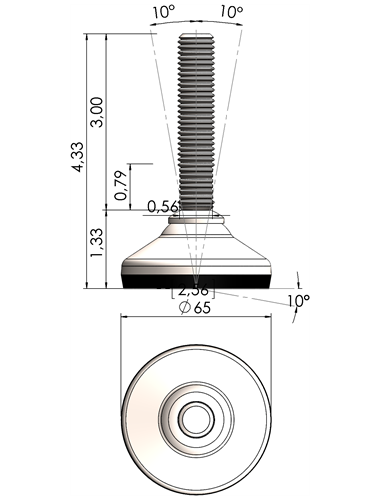

HX065-58-3	Quote Request	2.56	5/8	3	4.33	9
HX065-58-4	Quote Request	2.56	5/8	4	5.33	9

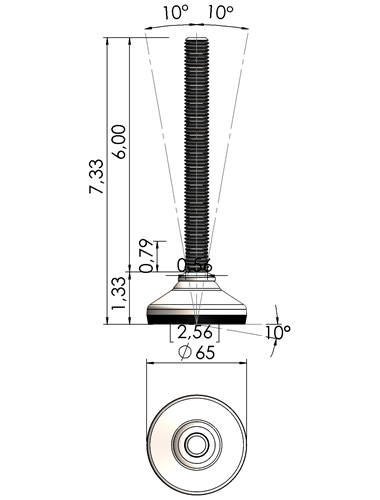

HX065-58-6	Quote Request	2.56	5/8	6	7.33	9

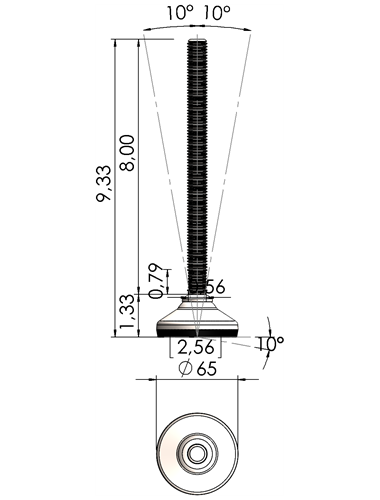

HX065-58-8	Quote Request	2.56	5/8	8	9.33	9

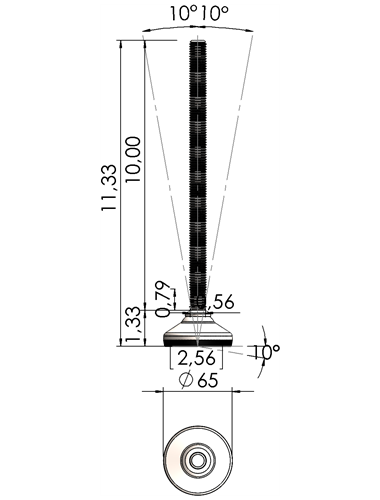

HX065-58-10	Quote Request	2.56	5/8	10	11.33	9

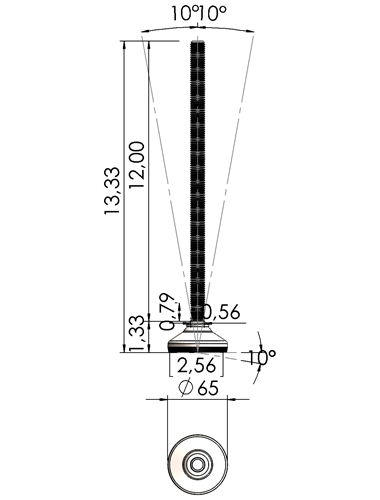

HX065-58-12	Quote Request	2.56	5/8	12	13.33	7.6

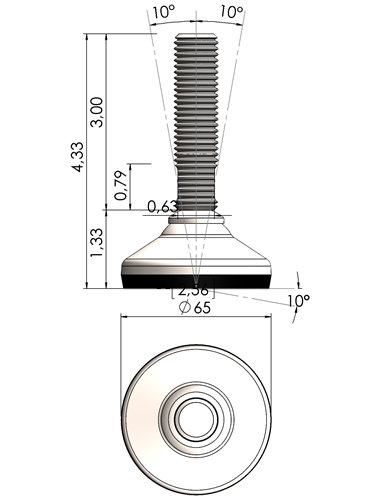

HX065-34-3	Quote Request	2.56	3/4	3	4.33	9

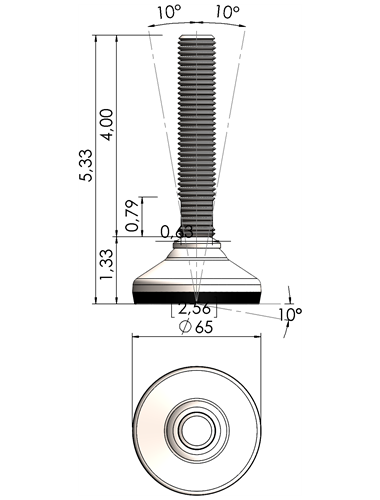

HX065-34-4	Quote Request	2.56	3/4	4	5.33	9

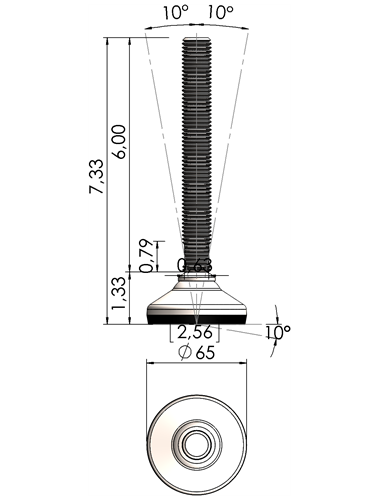

HX065-34-6	Quote Request	2.56	3/4	6	7.33	9

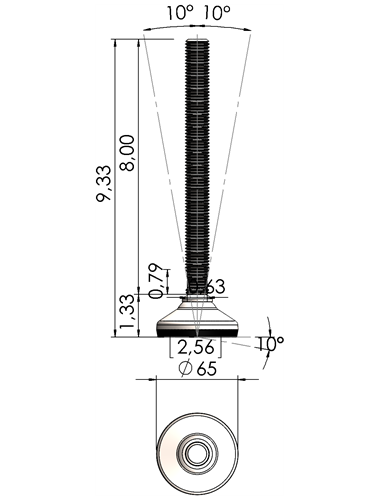

HX065-34-8	Quote Request	2.56	3/4	8	9.33	9

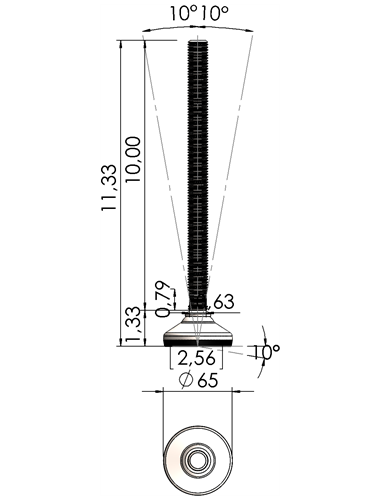

HX065-34-10	Quote Request	2.56	3/4	10	11.33	9

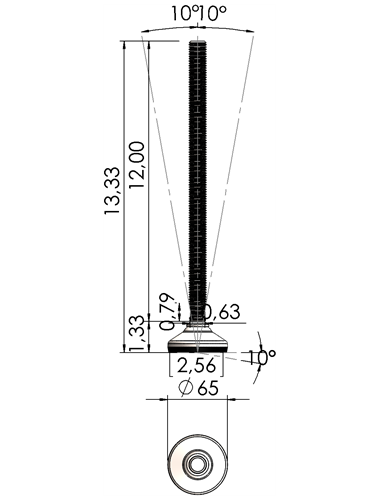

HX065-34-12	Quote Request	2.56	3/4	12	13.33	9

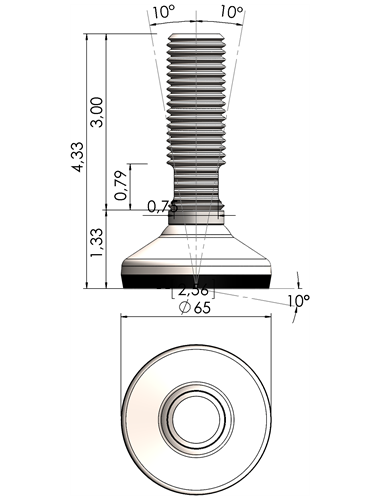

HX065-10-3	Quote Request	2.56	1	3	4.33	9

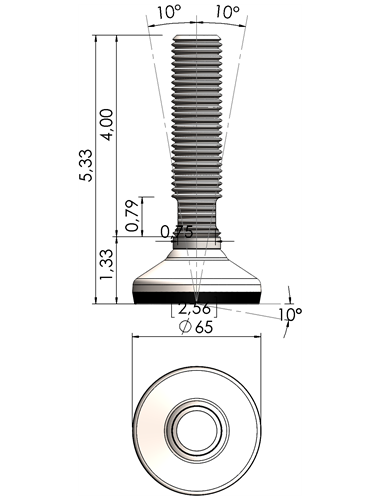

HX065-10-4	Quote Request	2.56	1	4	5.33	9

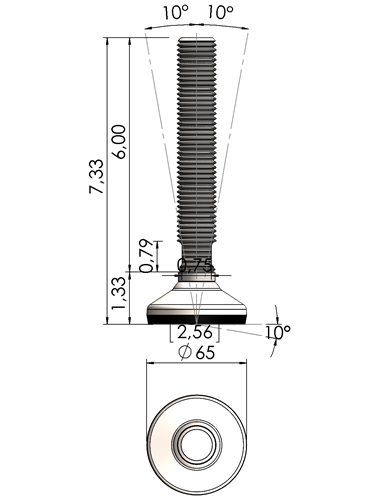

HX065-10-6	Quote Request	2.56	1	6	7.33	9
HX065-10-8	Quote Request	2.56	1	8	9.33	9

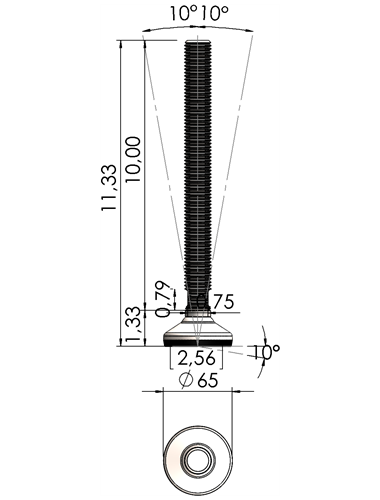

HX065-10-10	Quote Request	2.56	1	10	11.33	9
HX065-10-12	Quote Request	2.56	1	12	13.33	9

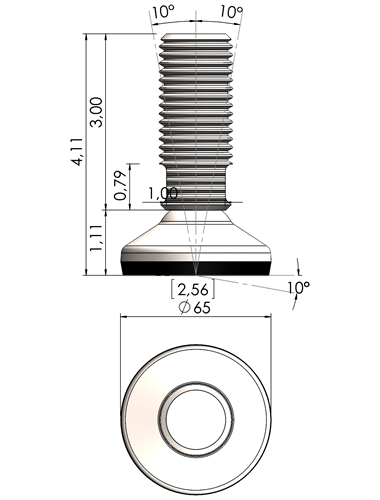

HX065-54-3	Quote Request	2.56	1 1/4	3	4.11	9

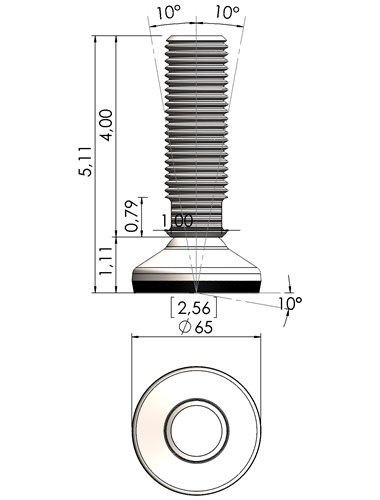

HX065-54-4	Quote Request	2.56	1 1/4	4	5.11	9

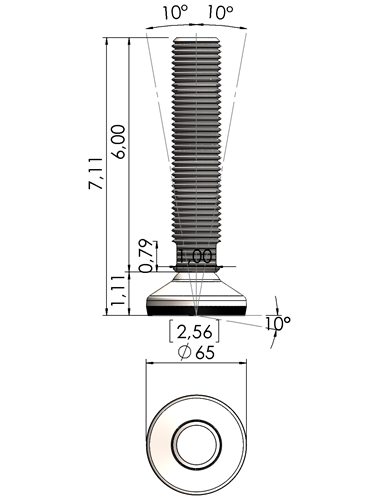

HX065-54-6	Quote Request	2.56	1 1/4	6	7.11	9

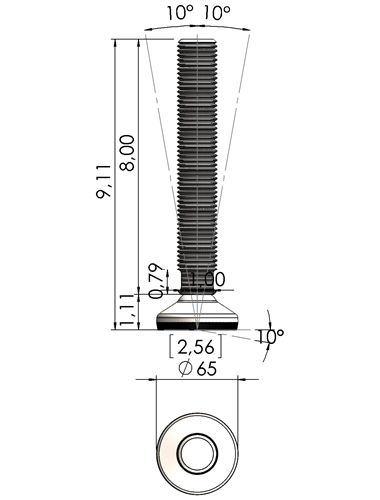

HX065-54-8	Quote Request	2.56	1 1/4	8	9.11	9

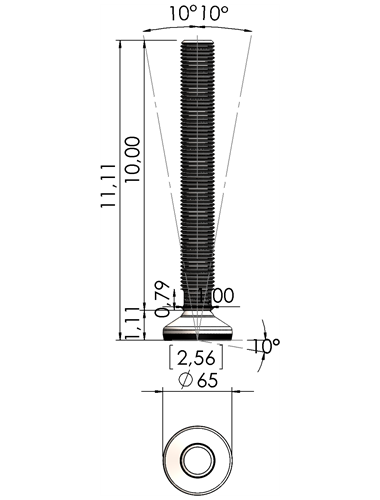

HX065-54-10	Quote Request	2.56	1 1/4	10	11.11	9

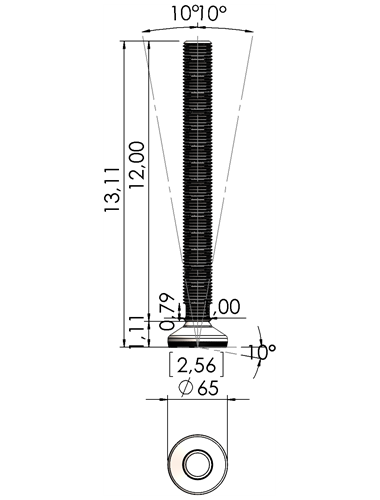

HX065-54-12	Quote Request	2.56	1 1/4	12	13.11	9

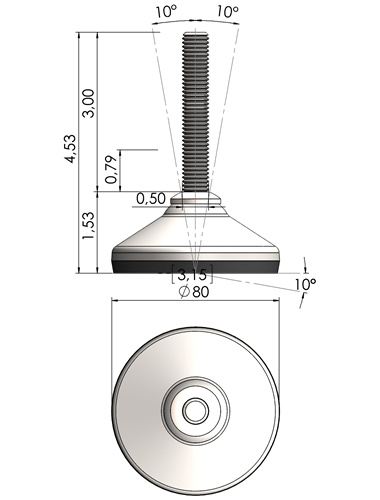

HX080-12-3	Quote Request	3.15	1/2	3	4.53	15

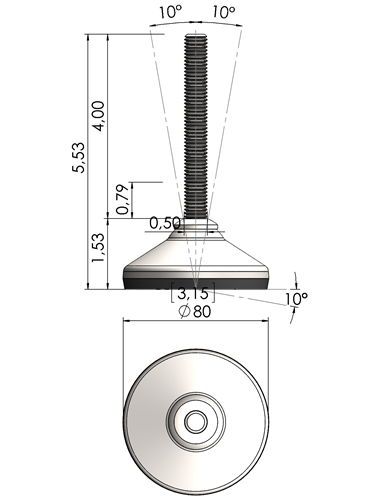

HX080-12-4	Quote Request	3.15	1/2	4	5.53	15

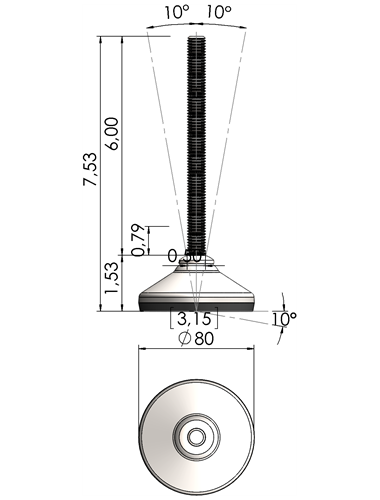

HX080-12-6	Quote Request	3.15	1/2	6	7.53	11.4

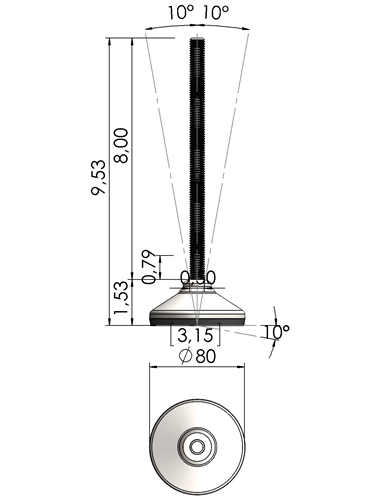

HX080-12-8	Quote Request	3.15	1/2	8	9.53	6.4

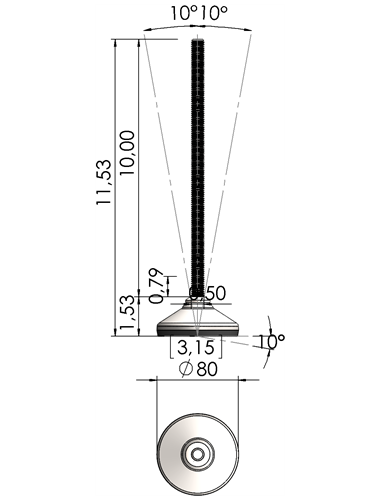

HX080-12-10	Quote Request	3.15	1/2	10	11.53	4.1
HX080-12-12	Quote Request	3.15	1/2	12	13.53	2.8

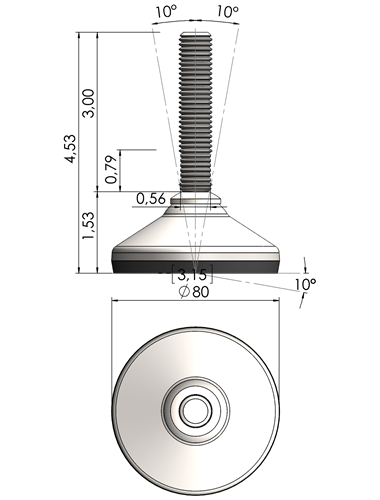

HX080-58-3	Quote Request	3.15	5/8	3	4.53	15

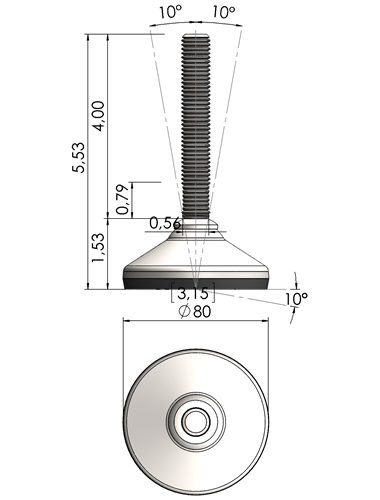

HX080-58-4	Quote Request	3.15	5/8	4	5.53	15
HX080-58-6	Quote Request	3.15	5/8	6	7.53	15

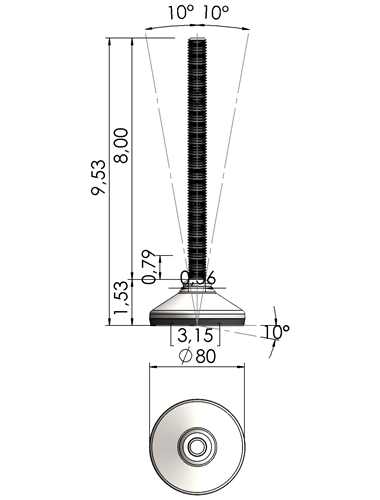

HX080-58-8	Quote Request	3.15	5/8	8	9.53	15

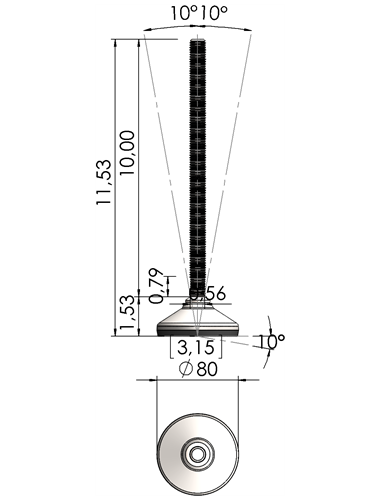

HX080-58-10	Quote Request	3.15	5/8	10	11.53	11

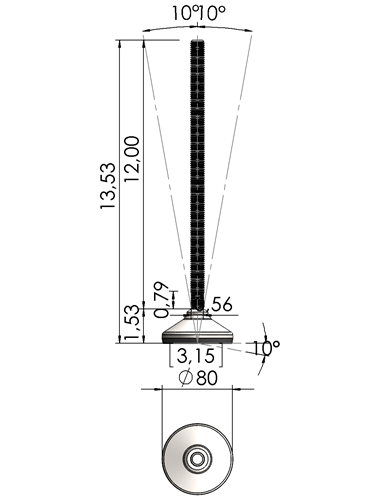

HX080-58-12	Quote Request	3.15	5/8	12	13.53	7.6

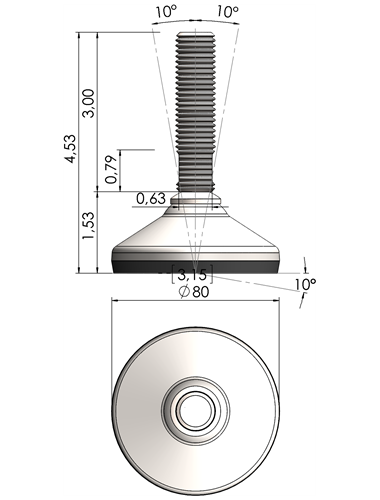

HX080-34-3	Quote Request	3.15	3/4	3	4.53	15

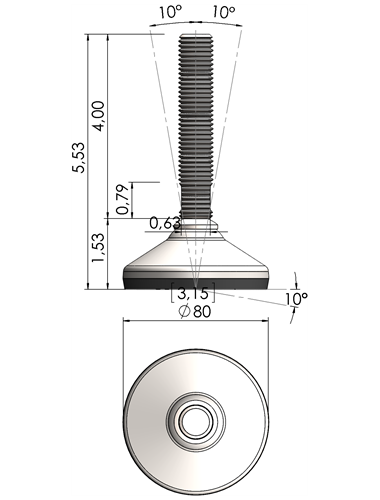

HX080-34-4	Quote Request	3.15	3/4	4	5.53	15
HX080-34-6	Quote Request	3.15	3/4	6	7.53	15

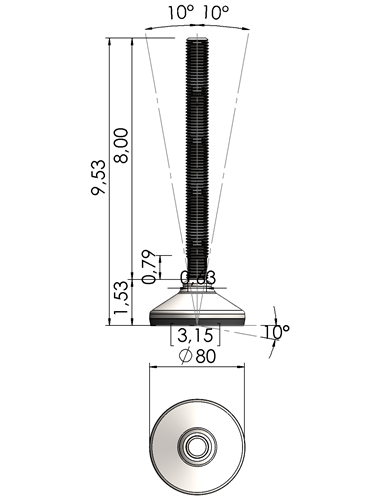

HX080-34-8	Quote Request	3.15	3/4	8	9.53	15

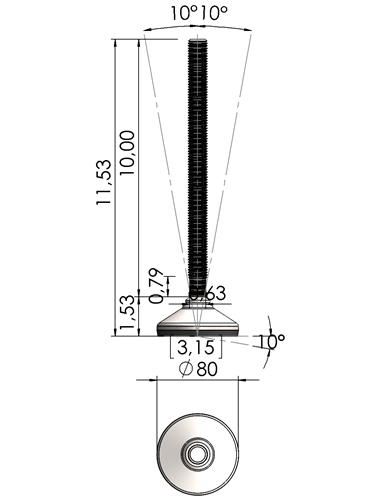

HX080-34-10	Quote Request	3.15	3/4	10	11.53	15

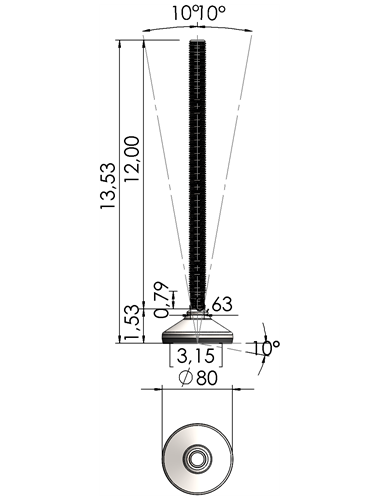

HX080-34-12	Quote Request	3.15	3/4	12	13.53	15

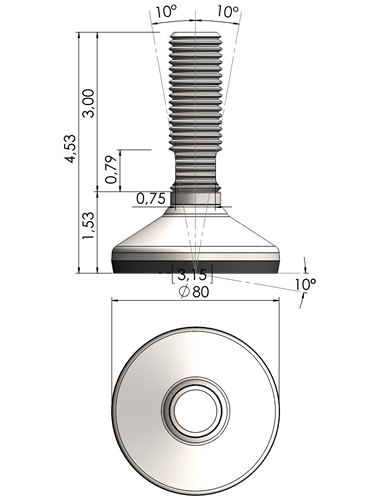

HX080-10-3	Quote Request	3.15	1	3	4.53	15

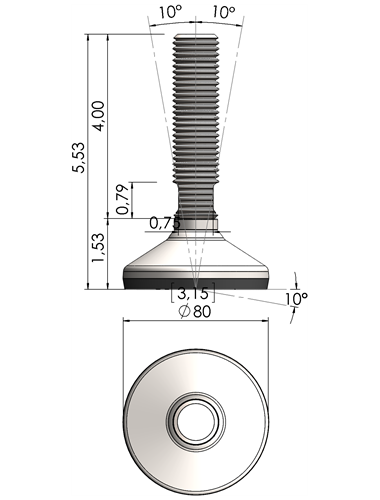

HX080-10-4	Quote Request	3.15	1	4	5.53	15

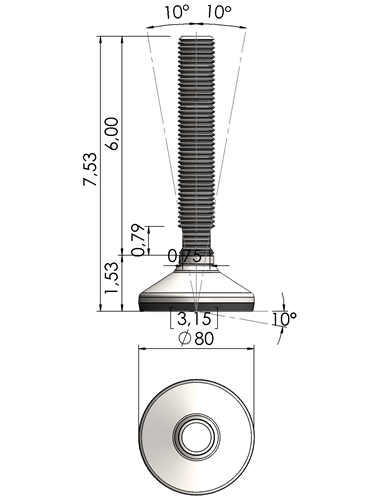

HX080-10-6	Quote Request	3.15	1	6	7.53	15
HX080-10-8	Quote Request	3.15	1	8	9.53	15

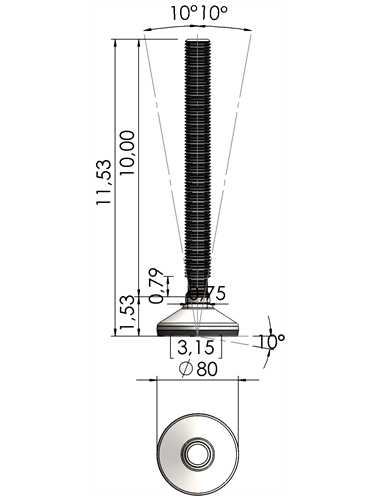

HX080-10-10	Quote Request	3.15	1	10	11.53	15

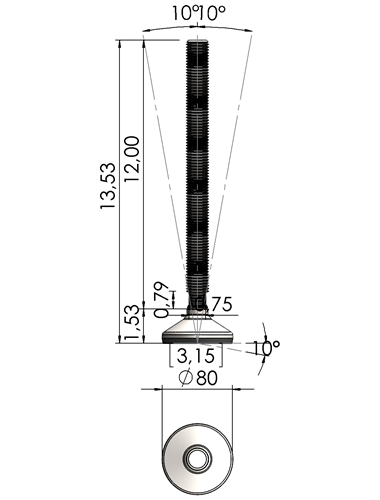

HX080-10-12	Quote Request	3.15	1	12	13.53	15

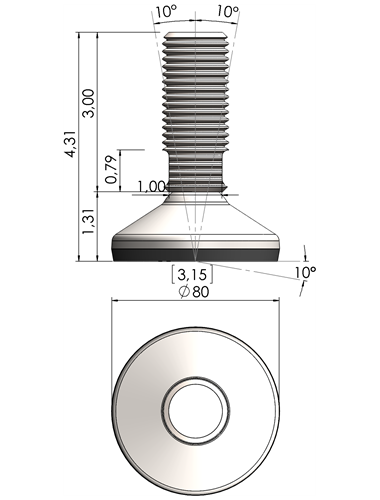

HX080-54-3	Quote Request	3.15	1 1/4	3	4.11	9
HX080-54-4	Quote Request	3.15	1 1/4	4	5.31	15
HX080-54-6	Quote Request	3.15	1 1/4	6	7.31	15

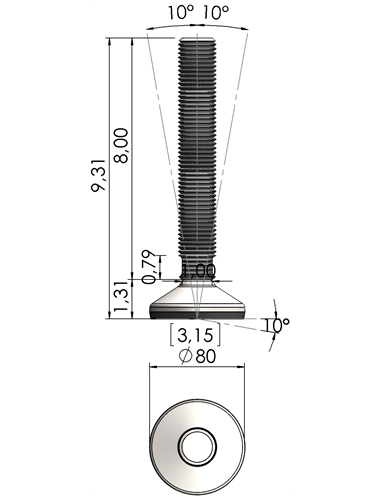

HX080-54-8	Quote Request	3.15	1 1/4	8	9.31	15

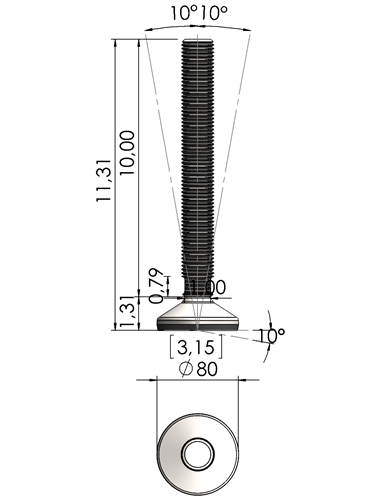

HX080-54-10	Quote Request	3.15	1 1/4	10	11.31	15

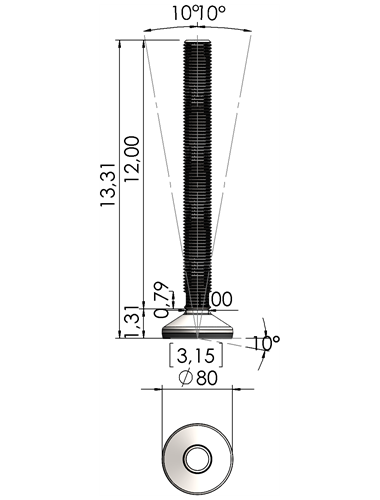

HX080-54-12	Quote Request	3.15	1 1/4	12	13.31	15
HX105-12-3	Quote Request	4.13	1/2	3	4.55	18.5

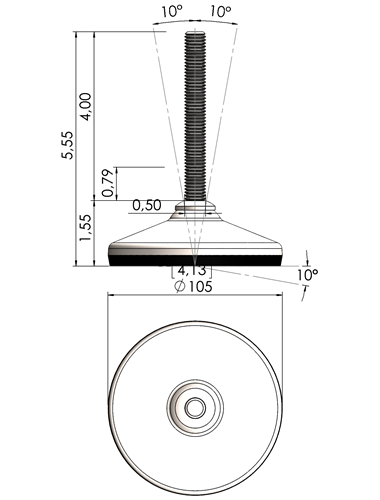

HX105-12-4	Quote Request	4.13	1/2	4	5.55	18.5

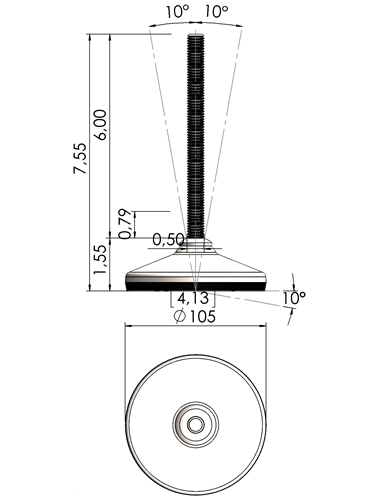

HX105-12-6	Quote Request	4.13	1/2	6	7.55	11.4
HX105-12-8	Quote Request	4.13	1/2	8	9.55	6.4

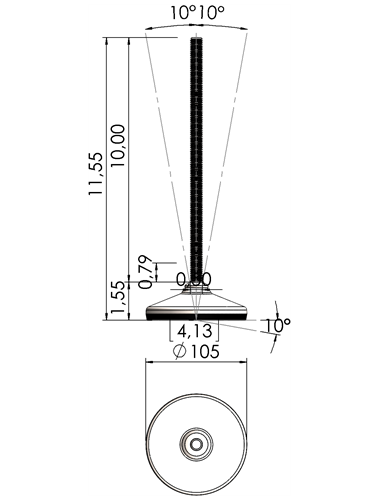

HX105-12-10	Quote Request	4.13	1/2	10	11.55	4.1

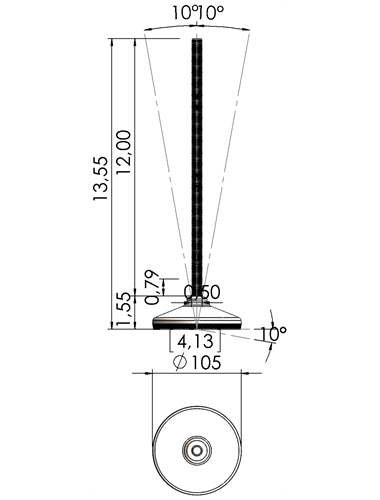

HX105-12-12	Quote Request	4.13	1/2	12	13.55	2.8

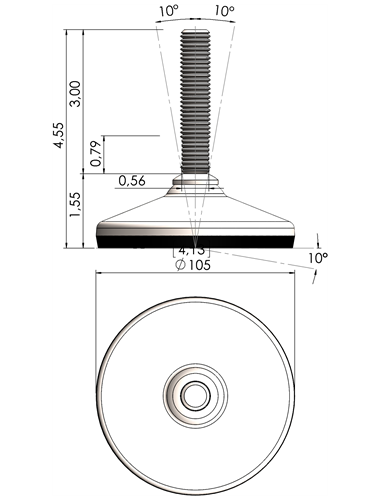

HX105-58-3	Quote Request	4.13	5/8	3	4.55	22
HX105-58-4	Quote Request	4.13	5/8	4	5.55	22

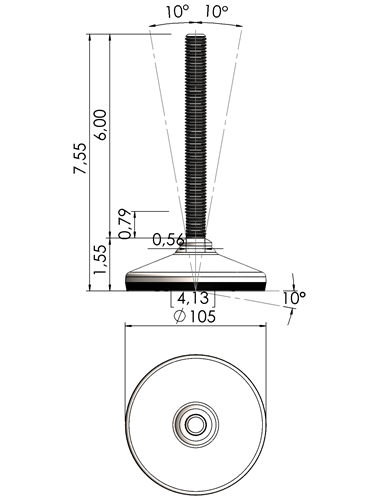

HX105-58-6	Quote Request	4.13	5/8	6	7.55	22

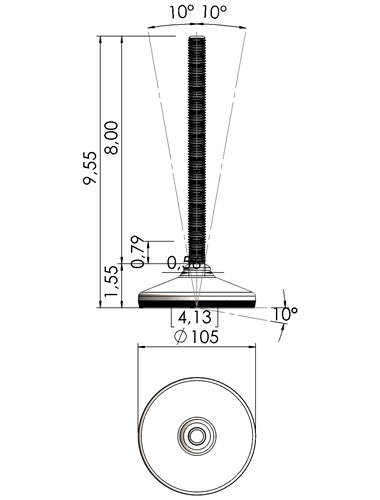

HX105-58-8	Quote Request	4.13	5/8	8	9.55	17.2

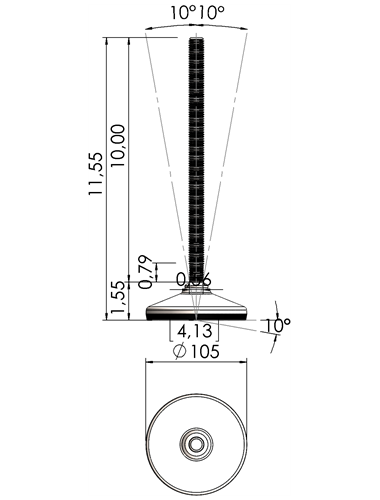

HX105-58-10	Quote Request	4.13	5/8	10	11.55	11

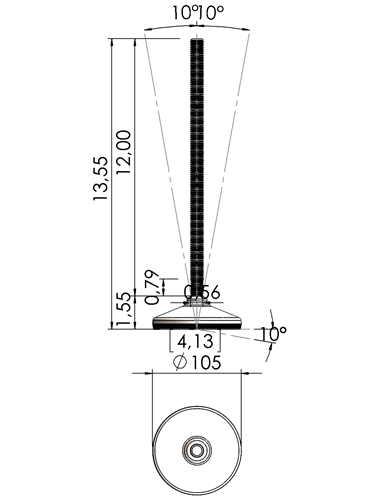

HX105-58-12	Quote Request	4.13	5/8	12	13.55	7.6
HX105-34-3	Quote Request	4.13	3/4	3	4.55	22

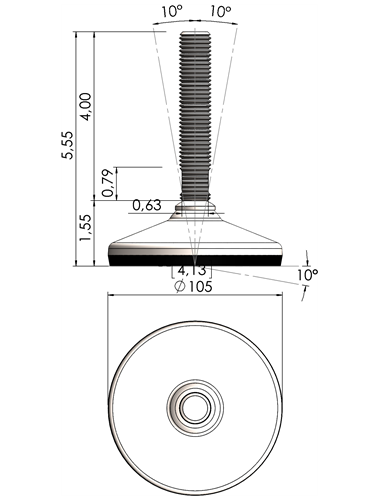

HX105-34-4	Quote Request	4.13	3/4	4	5.55	22
HX105-34-6	Quote Request	4.13	3/4	6	7.55	22

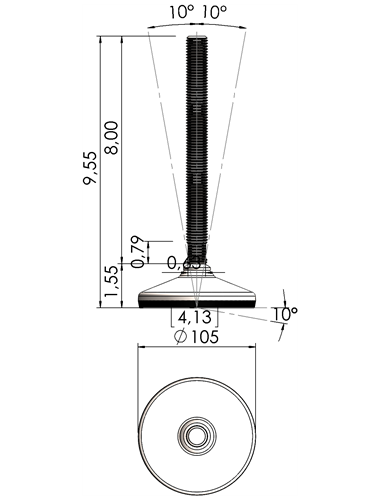

HX105-34-8	Quote Request	4.13	3/4	8	9.55	22
HX105-34-10	Quote Request	4.13	3/4	10	11.55	22

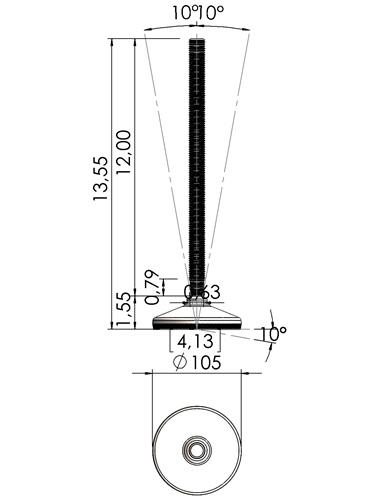

HX105-34-12	Quote Request	4.13	3/4	12	13.55	16

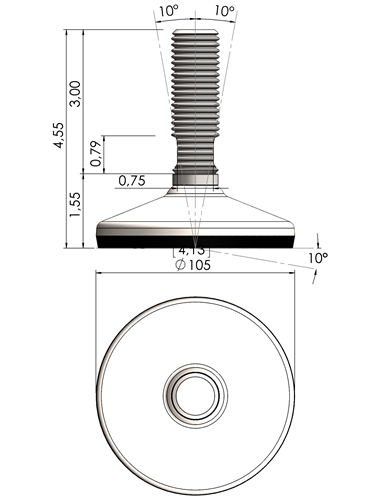

HX105-10-3	Quote Request	4.13	1	3	4.55	22

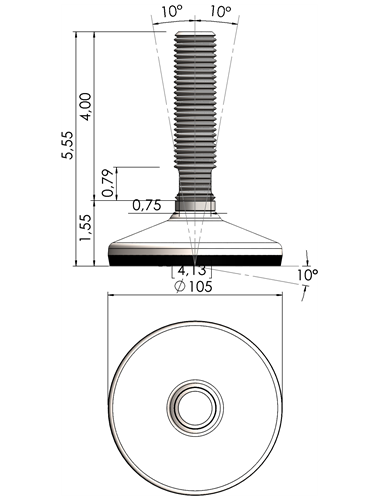

HX105-10-4	Quote Request	4.13	1	4	5.55	22

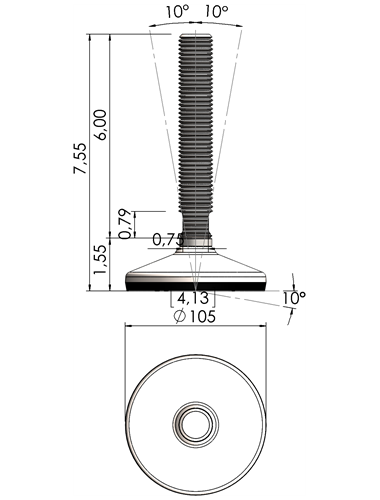

HX105-10-6	Quote Request	4.13	1	6	7.55	22
HX105-10-8	Quote Request	4.13	1	8	9.55	22

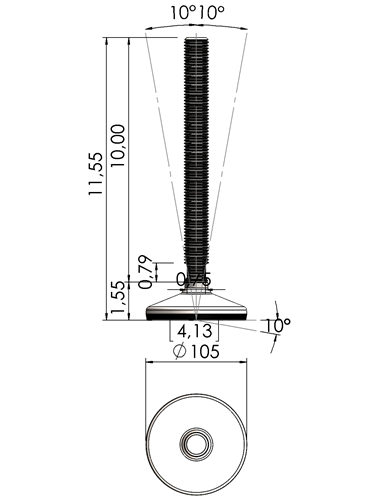

HX105-10-10	Quote Request	4.13	1	10	11.55	22

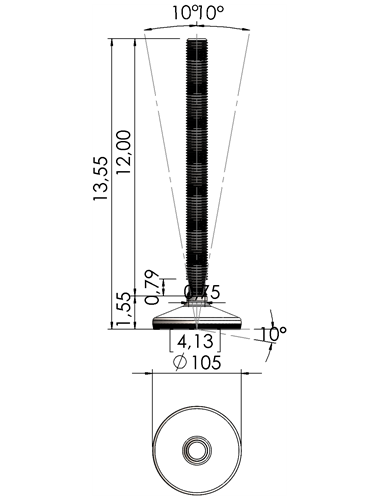

HX105-10-12	Quote Request	4.13	1	12	13.55	22
HX105-54-3	Quote Request	4.13	1 1/4	3	4.33	22

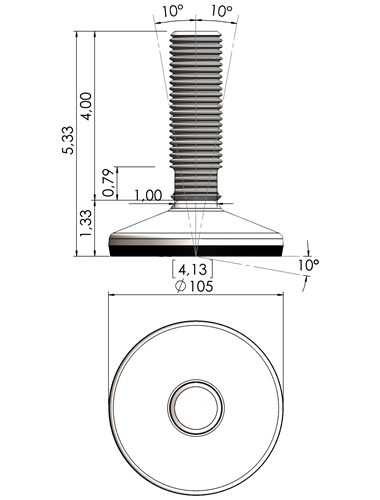

HX105-54-4	Quote Request	4.13	1 1/4	4	5.33	22

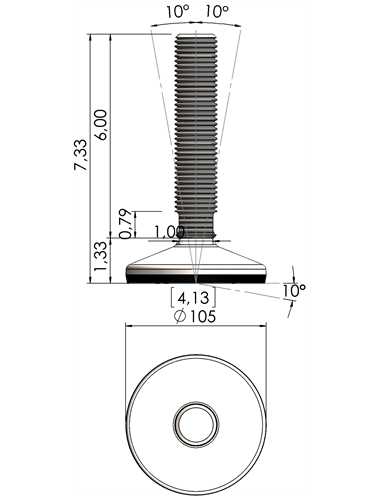

HX105-54-6	Quote Request	4.13	1 1/4	6	7.33	22
HX105-54-8	Quote Request	4.13	1 1/4	8	9.33	22

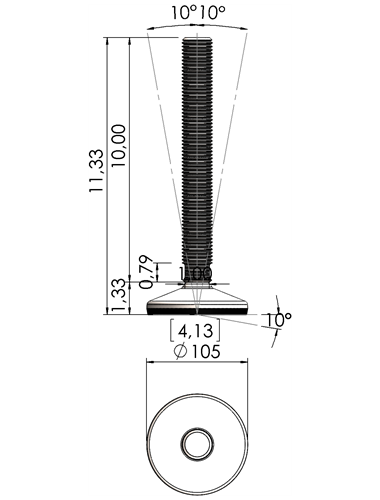

HX105-54-10	Quote Request	4.13	1 1/4	10	11.33	22

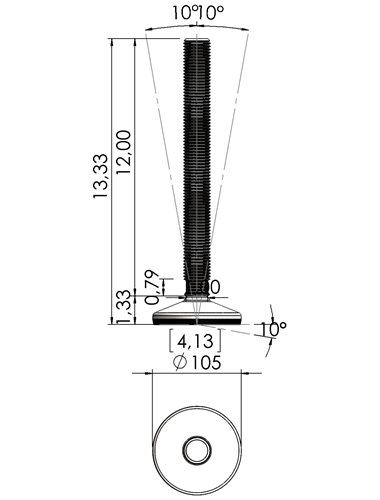

HX105-54-12	Quote Request	4.13	1 1/4	12	13.33	22
HX125-12-3	Quote Request	4.92	1/2	3	4.57	18.5
HX125-12-4	Quote Request	4.92	1/2	4	5.57	18.5

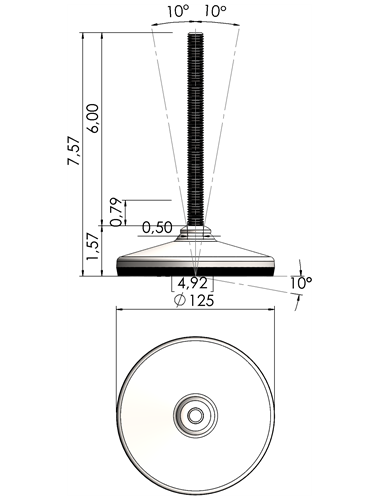

HX125-12-6	Quote Request	4.92	1/2	6	7.57	11.4

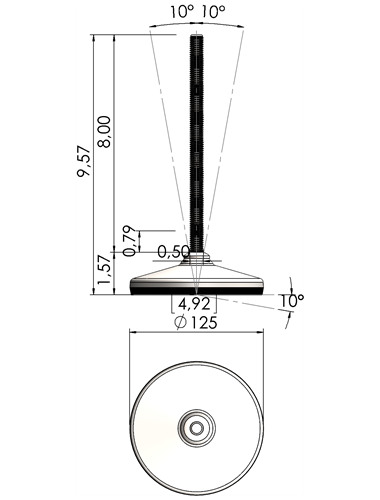

HX125-12-8	Quote Request	4.92	1/2	8	9.57	6.4

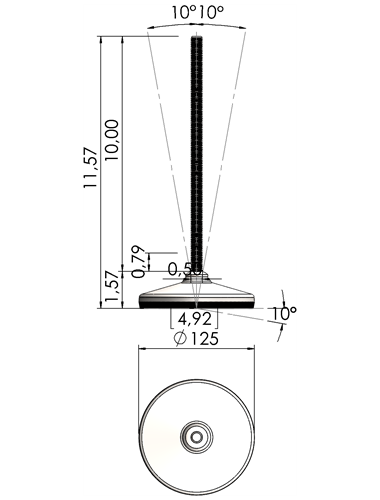

HX125-12-10	Quote Request	4.92	1/2	10	11.57	4.1
HX125-12-12	Quote Request	4.92	1/2	12	13.57	2.8

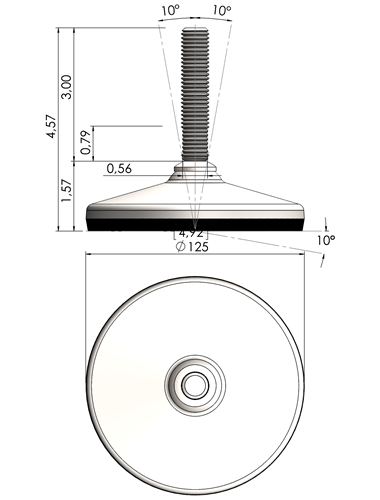

HX125-58-3	Quote Request	4.92	5/8	3	4.57	30.3
HX125-58-4	Quote Request	4.92	5/8	4	5.57	30.3

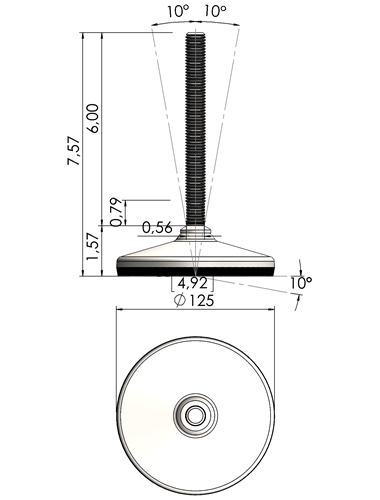

HX125-58-6	Quote Request	4.92	5/8	6	7.57	30.3

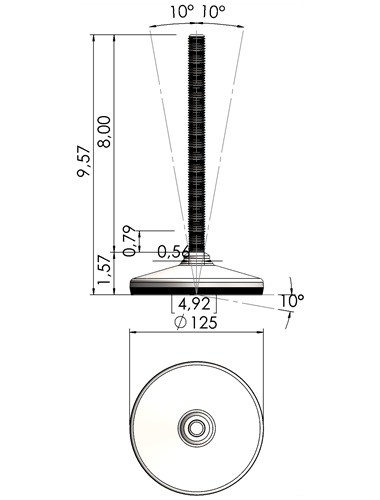

HX125-58-8	Quote Request	4.92	5/8	8	9.57	17.2

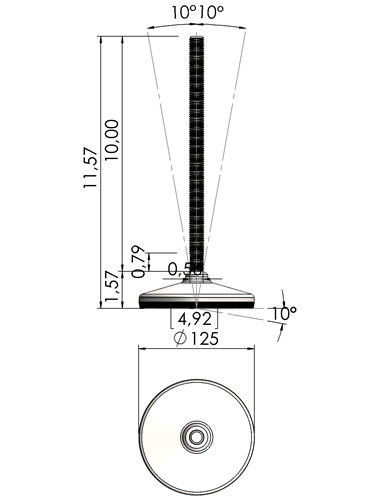

HX125-58-10	Quote Request	4.92	5/8	10	11.57	11
HX125-58-12	Quote Request	4.92	5/8	12	13.57	7.6

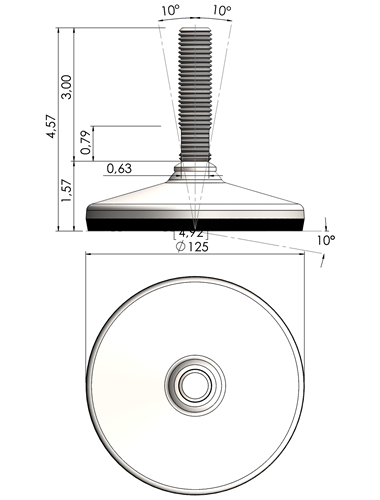

HX125-34-3	Quote Request	4.92	3/4	3	4.57	32

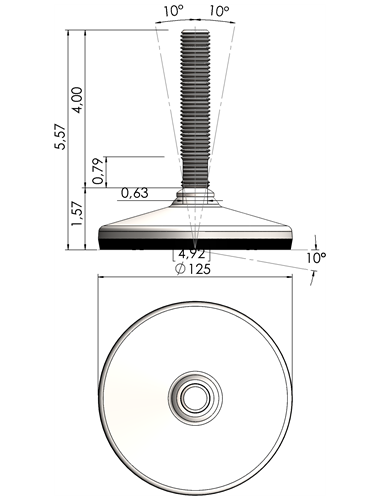

HX125-34-4	Quote Request	4.92	3/4	4	5.57	32
HX125-34-6	Quote Request	4.92	3/4	6	7.57	32
HX125-34-8	Quote Request	4.92	3/4	8	9.57	32

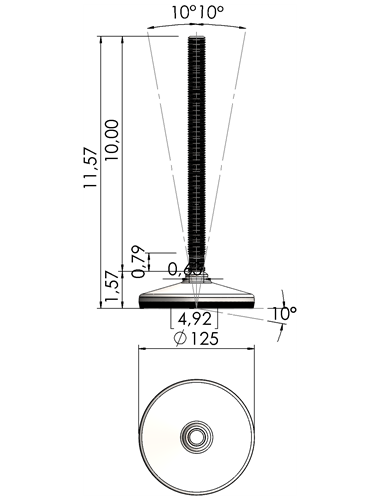

HX125-34-10	Quote Request	4.92	3/4	10	11.57	23

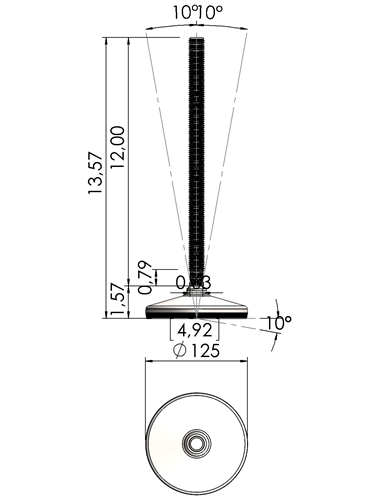

HX125-34-12	Quote Request	4.92	3/4	12	13.57	16

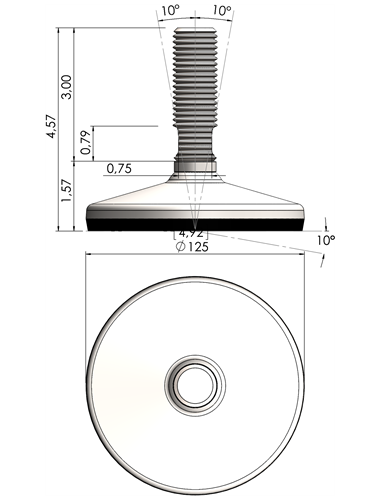

HX125-10-3	Quote Request	4.92	1	3	4.57	32
HX125-10-4	Quote Request	4.92	1	4	5.57	32
HX125-10-6	Quote Request	4.92	1	6	7.57	32

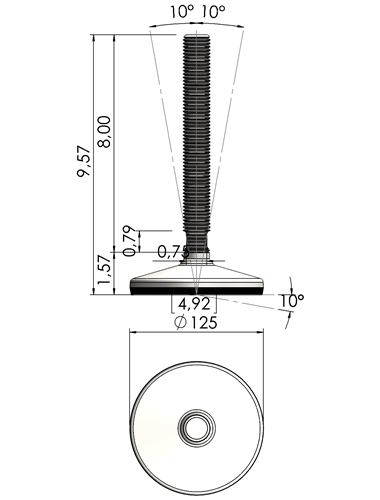

HX125-10-8	Quote Request	4.92	1	8	9.57	32

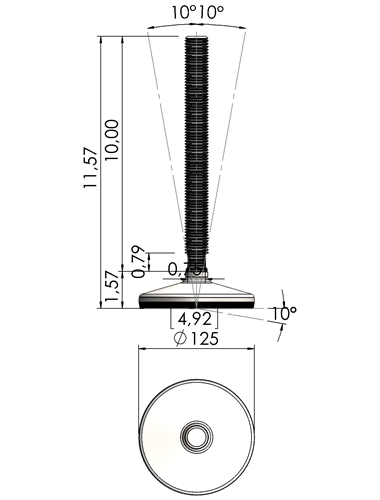

HX125-10-10	Quote Request	4.92	1	10	11.57	32

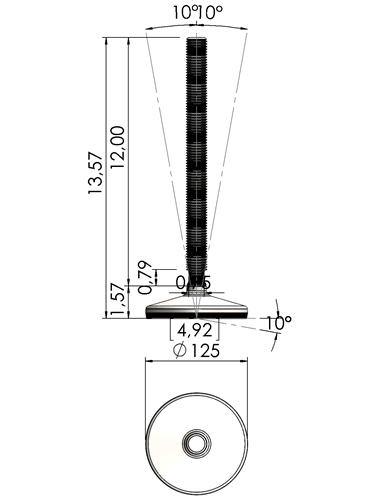

HX125-10-12	Quote Request	4.92	1	12	13.57	32

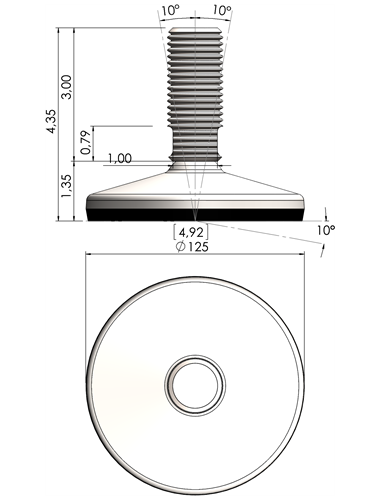

HX125-54-3	Quote Request	4.92	1 1/4	3	4.35	32

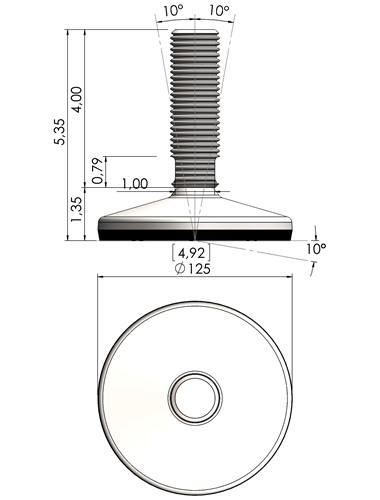

HX125-54-4	Quote Request	4.92	1 1/4	4	5.35	32

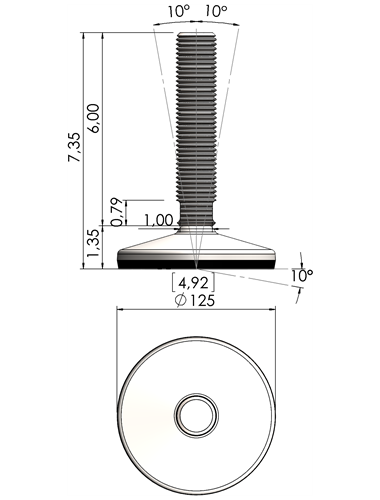

HX125-54-6	Quote Request	4.92	1 1/4	6	7.35	32

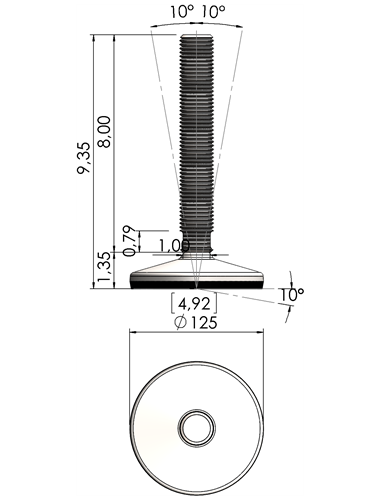

HX125-54-8	Quote Request	4.92	1 1/4	8	9.35	32

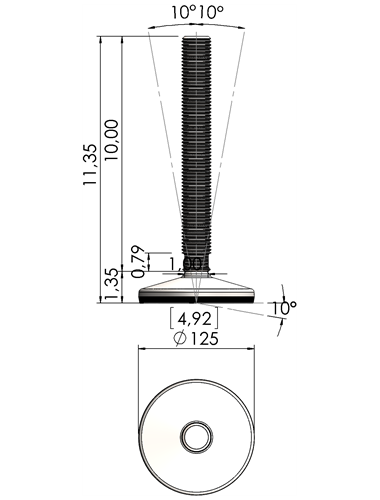

HX125-54-10	Quote Request	4.92	1 1/4	10	11.35	32

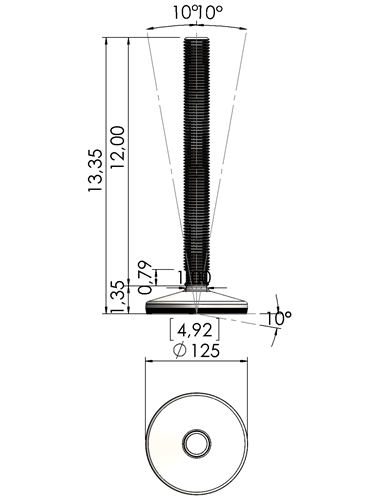

HX125-54-12	Quote Request	4.92	1 1/4	12	13.35	32

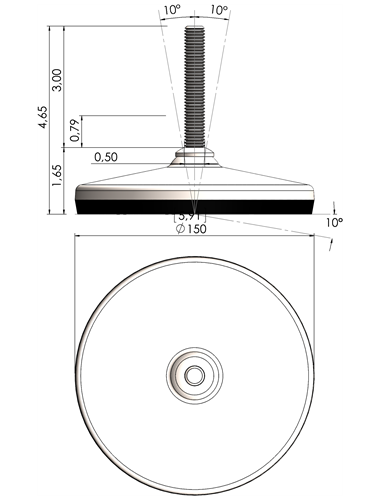

HX150-12-3	Quote Request	5.91	1/2	3	4.65	18.5

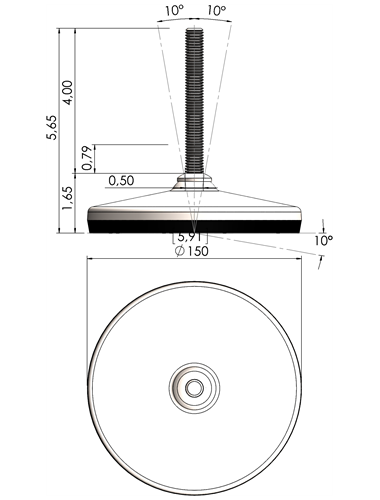

HX150-12-4	Quote Request	5.91	1/2	4	5.65	18.5
HX150-12-6	Quote Request	5.91	1/2	6	7.65	11.4

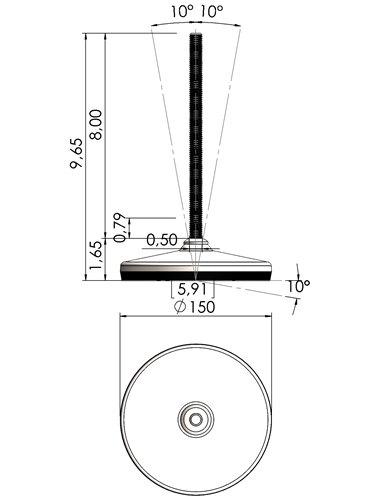

HX150-12-8	Quote Request	5.91	1/2	8	9.65	6.4
HX150-12-10	Quote Request	5.91	1/2	10	11.65	4.1

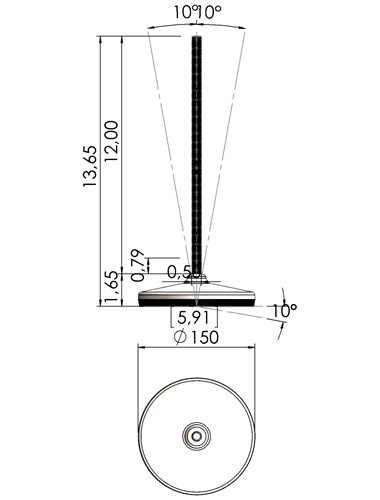

HX150-12-12	Quote Request	5.91	1/2	12	13.65	2.8
HX150-58-3	Quote Request	5.91	5/8	3	4.65	30.3

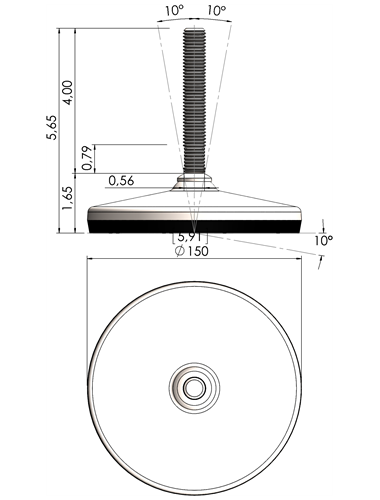

HX150-58-4	Quote Request	5.91	5/8	4	5.65	30.3
HX150-58-6	Quote Request	5.91	5/8	6	7.65	30.3

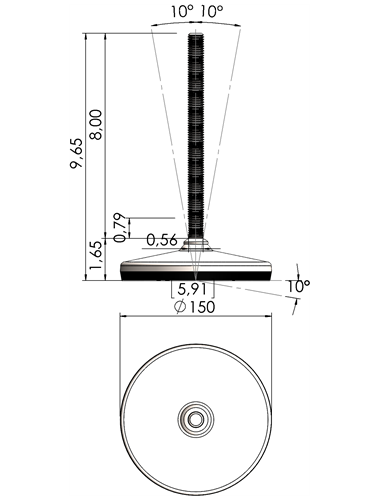

HX150-58-8	Quote Request	5.91	5/8	8	9.65	17.2

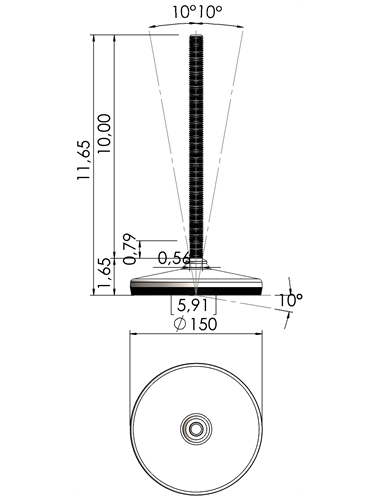

HX150-58-10	Quote Request	5.91	5/8	10	11.65	11

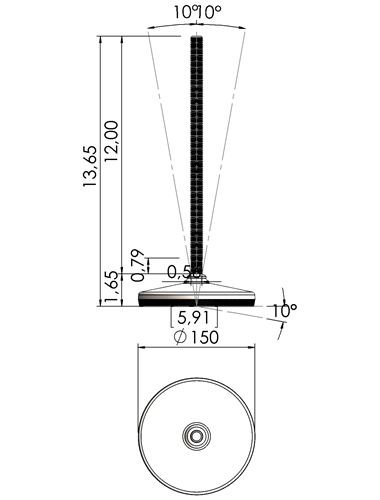

HX150-58-12	Quote Request	5.91	5/8	12	13.65	7.6
HX150-34-3	Quote Request	5.91	3/4	3	4.65	43.8
HX150-34-4	Quote Request	5.91	3/4	4	5.65	43.8

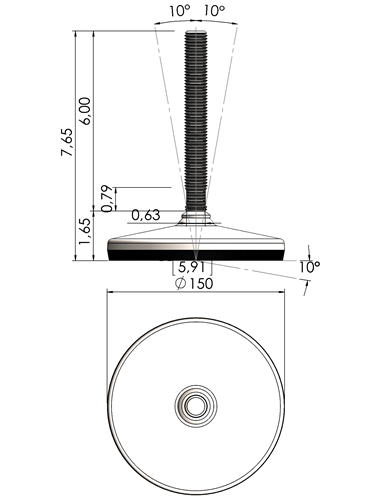

HX150-34-6	Quote Request	5.91	3/4	6	7.65	43.8

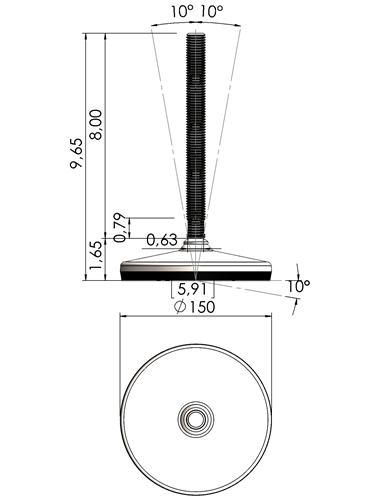

HX150-34-8	Quote Request	5.91	3/4	8	9.65	36

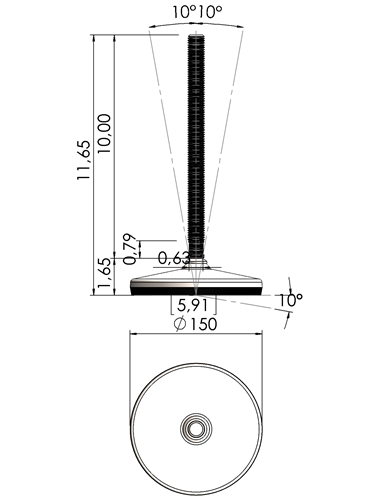

HX150-34-10	Quote Request	5.91	3/4	10	11.65	23

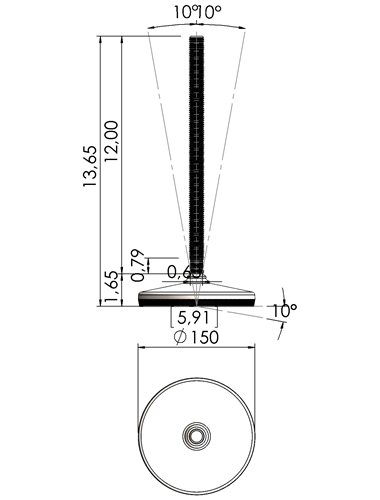

HX150-34-12	Quote Request	5.91	3/4	12	13.65	16

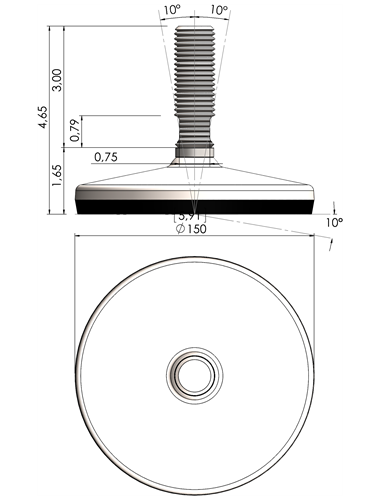

HX150-10-3	Quote Request	5.91	1	3	4.65	70
HX150-10-4	Quote Request	5.91	1	4	5.65	70

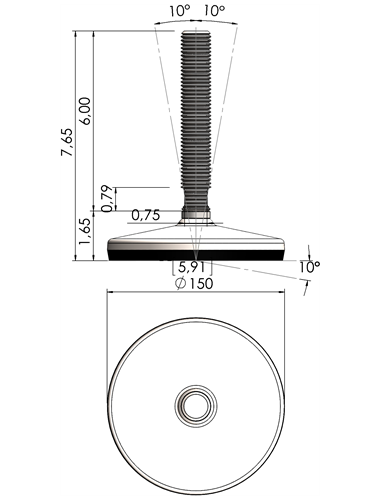

HX150-10-6	Quote Request	5.91	1	6	7.65	70
HX150-10-8	Quote Request	5.91	1	8	9.65	70
HX150-10-10	Quote Request	5.91	1	10	11.65	70
HX150-10-12	Quote Request	5.91	1	12	13.65	50.2

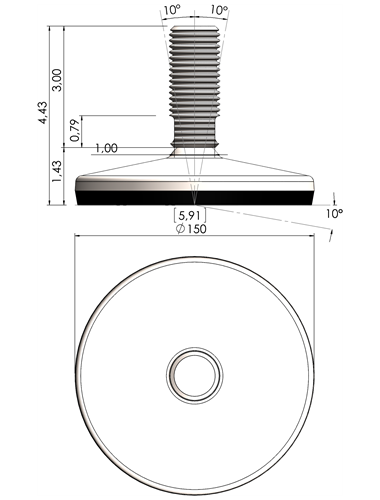

HX150-54-3	Quote Request	5.91	1 1/4	3	4.43	70
HX150-54-4	Quote Request	5.91	1 1/4	4	5.43	70

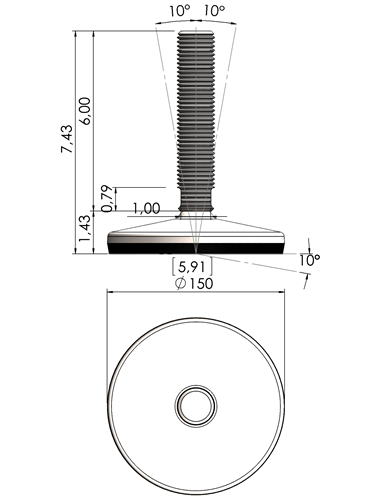

HX150-54-6	Quote Request	5.91	1 1/4	6	7.43	70

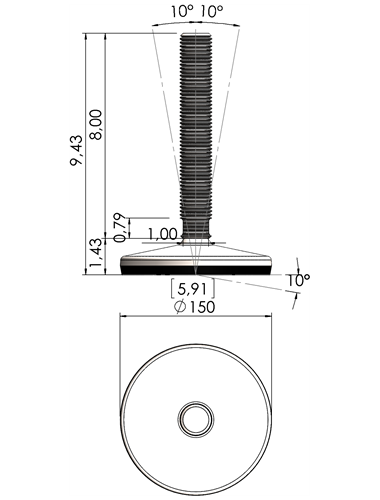

HX150-54-8	Quote Request	5.91	1 1/4	8	9.43	70
HX150-54-10	Quote Request	5.91	1 1/4	10	11.43	70
HX150-54-12	Quote Request	5.91	1 1/4	12	13.43	70
HX150-54-12	Quote Request	5.91	1 1/4	12	13.43	70
