A massive footplate ensuring a 3A and EHEDG certified solution minimizing the cleaning expenses and water consumption.

Hex

Product DescriptionFoot Plate TypeSpindle Thread (UNC)Thread Length (inches)Total Height (D)Machine Foot Load (N)

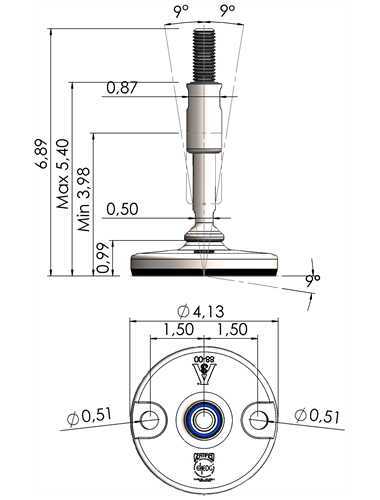

XHJ105-XHJG5859-RHOX5820 Quote Request 4.135/85.9066.8930.300

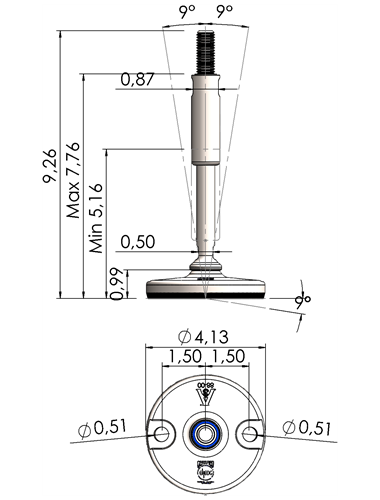

XHJ105-XHJG5883-RHOX5832 Quote Request 4.135/88.2689.2624.100

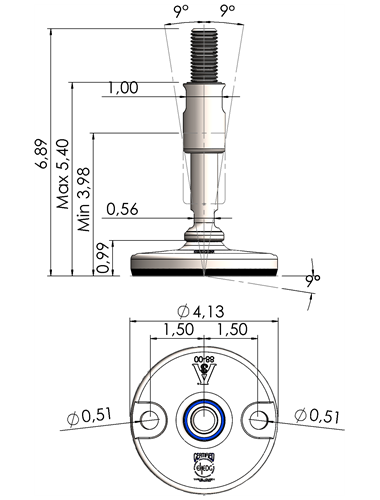

XHJ105-XHJG3459-RHOX3420 Quote Request 4.133/45.9066.8943.800

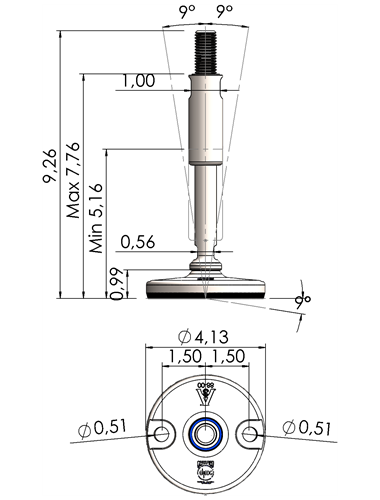

XHJ105-XHJG3483-RHOX3432 Quote Request 4.133/48.2689.2643.800

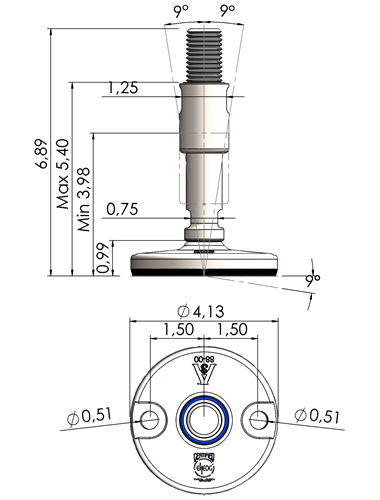

XHJ105-XHJG1059-RHOX1020 Quote Request 4.1315.9066.8977.500

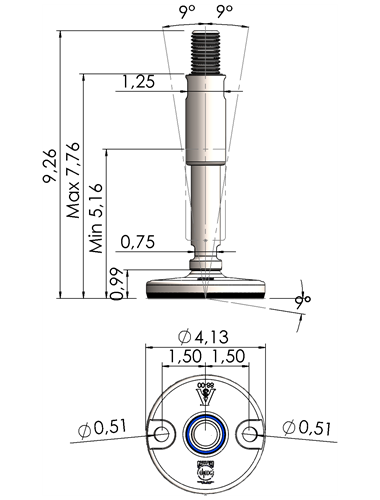

XHJ105-XHJG1083-RHOX1032 Quote Request 4.1318.2689.2677.500

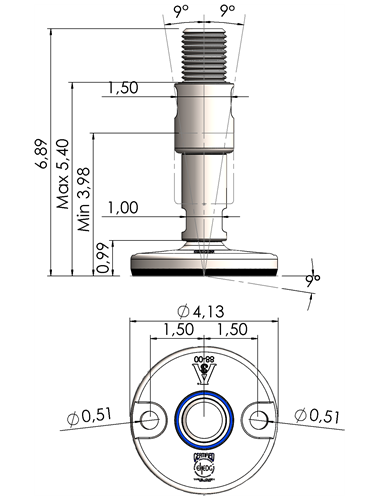

XHJ105-XHJG5459-RHOX5420 Quote Request 4.131 1/45.9066.89110.000

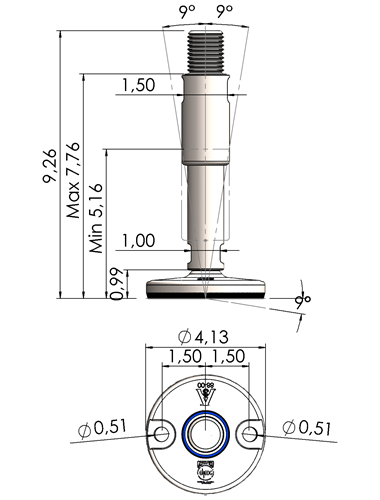

XHJ105-XHJG5483-RHOX5432 Quote Request 4.131 1/48.2689.26110.000

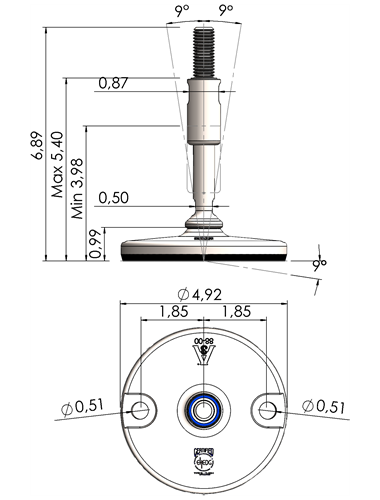

XHJ125-XHJG5859-RHOX5820 Quote Request 4.925/85.9066.8930.300

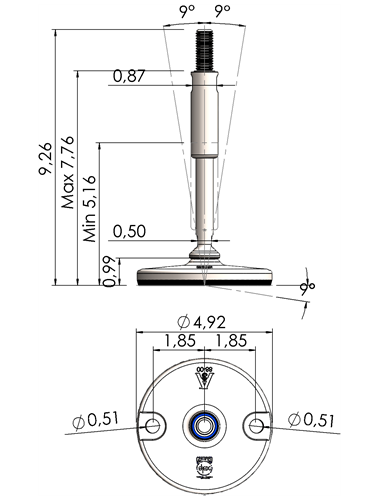

XHJ125-XHJG5883-RHOX5832 Quote Request 4.925/88.2689.2624.100

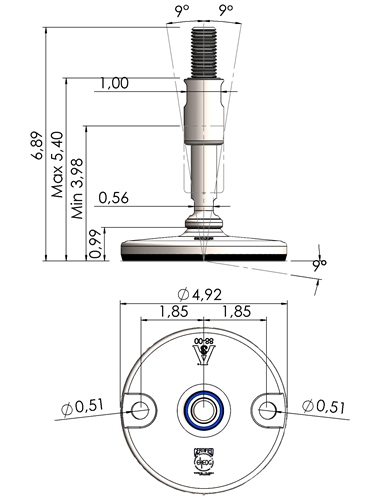

XHJ125-XHJG3459-RHOX3420 Quote Request 4.923/45.9066.8943.800

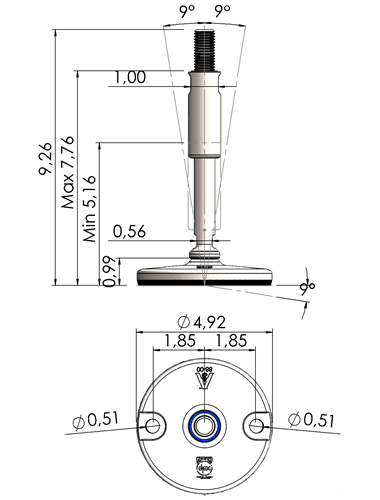

XHJ125-XHJG3483-RHOX3432 Quote Request 4.923/48.2689.2643.800

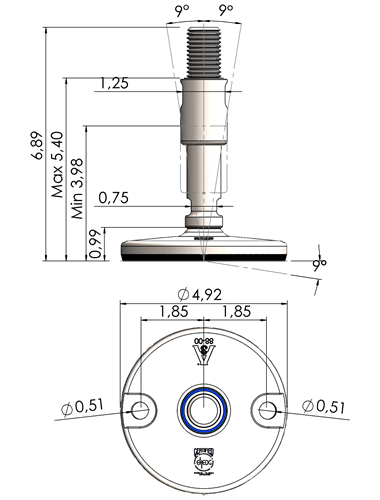

XHJ125-XHJG1059-RHOX1020 Quote Request 4.9215.9066.8977.500

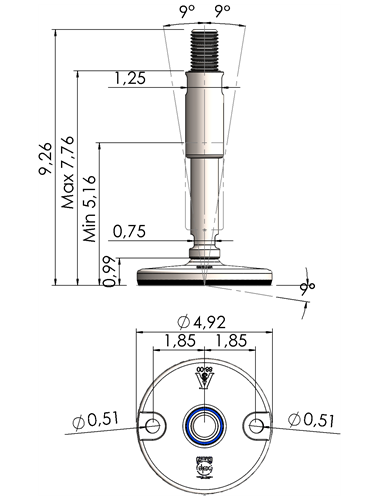

XHJ125-XHJG1083-RHOX1032 Quote Request 4.9218.2689.2677.500

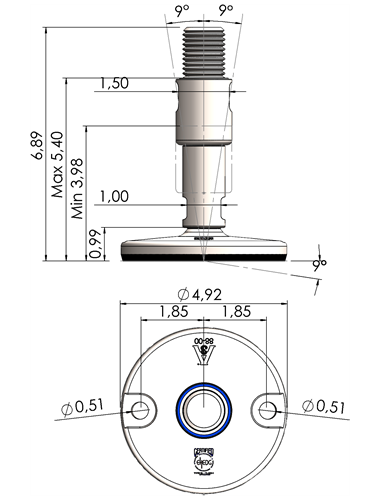

XHJ125-XHJG5459-RHOX5420 Quote Request 4.921 1/45.9066.89110.000

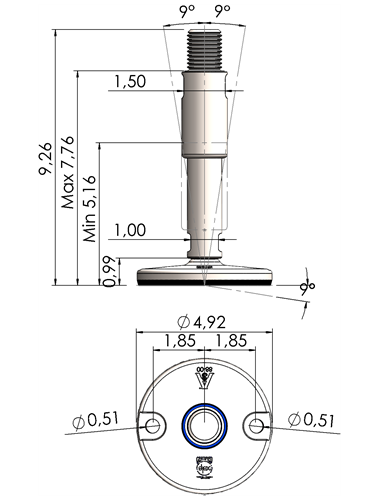

XHJ125-XHJG5483-RHOX5432 Quote Request 4.921 1/48.2689.26110.000
XHJ125-XHJG5483-RHOX5432 Quote Request 4.921 1/48.2689.26110.000
